109-00039

Active

HELLERMANNTYTON

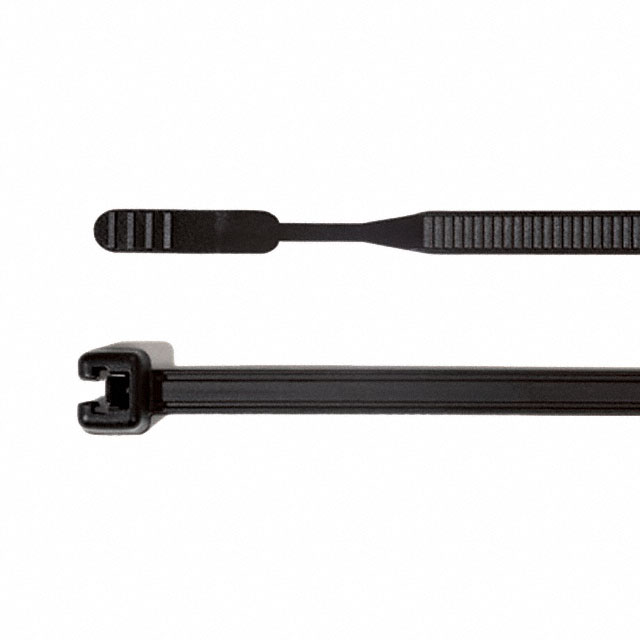

CBL TIE LOCKING BLACK 30LBS 6.3"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

109-00039

Active

HELLERMANNTYTON

CBL TIE LOCKING BLACK 30LBS 6.3"

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109-00039	109-00 Series

Bundle Diameter	-	0.94 - 130 mm
Bundle Diameter	-	1.97 - 23.8 in
Bundle Diameter [diameter]	1.5 in	1.5 - 4.33 in
Bundle Diameter [diameter]	38.1 mm	38.1 - 110 mm
Color	Black	Black, Natural
Features	Halogen Free, Pre-Lock	Halogen Free, Pre-Lock, Heat Stabilized
Length - Actual	-	155 - 300 mm
Length - Actual	-	0.509 - 0.984 ft
Length - Actual	-	6.1 - 11.81 in
Length - Actual	-	1.345 ft
Length - Actual [x]	160 mm	105 - 520 mm
Length - Actual [x]	0.525 '	0.344 - 1.706 ft
Length - Actual [x]	6.3 "	4.13 - 11.42 in
Length - Approximate	-	4.25 - 20.5 "
Length - Approximate [x]	6.25 in	6 - 6.25 in
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	13.61 kg	8.16 - 54.43 kg
Tensile Strength	30 lbs	18 - 120 lbs
Width [x]	0.142 in	0.102 - 0.303 in
Width [x]	3.61 mm	2.6 - 7.7 mm
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

109-00 Series

CBL TIE LOCKING BLK 30LBS 9.84"

Part	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Mounting Type	Material	Features	Width [x]	Width [x]	Length - Actual	Length - Actual	Length - Actual	Length - Approximate	Tensile Strength	Tensile Strength	Wire/Cable Tie Type	Bundle Diameter	Bundle Diameter	Length - Approximate [x]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]
HELLERMANNTYTON 109-00043	Black	65 mm	2.56 in	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.142 in	3.61 mm	250 mm	0.82 ft	9.84 in	9.75 "	13.61 kg	30 lbs	Locking, Standard
HELLERMANNTYTON 109-00012	Natural			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.142 in	3.61 mm	200 mm	0.656 ft	7.87 "	8 in	13.61 kg	30 lbs	Locking, Standard	50 mm	1.97 in
HELLERMANNTYTON 109-00033	Black	40 mm	1.57 in	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.102 in	2.6 mm	155 mm	0.509 ft	6.1 in		8.16 kg	18 lbs	Locking, Standard			6 in
HELLERMANNTYTON 109-00047	Black			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.185 in	4.7 mm				8.25 in	22.68 kg	50 lbs	Locking, Standard	50 mm	1.97 in		210 mm	0.689 ft	8.27 in
HELLERMANNTYTON 109-00049	Black	75 mm	2.95 "	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.185 in	4.7 mm				11.5 in	22.68 kg	50 lbs	Locking, Standard				290 mm	0.951 ft	11.42 "
HELLERMANNTYTON 109-00111	Black	70 mm	2.76 in	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.303 in	7.7 mm	300 mm	0.984 ft	11.81 "	11.75 in	54.43 kg	120 lbs	Locking, Standard
HELLERMANNTYTON 109-00088	Black			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.102 in	2.6 mm				4.25 in	8.16 kg	18 lbs	Locking, Standard	0.94 in	23.8 mm		105 mm	0.344 ft	4.13 "
HELLERMANNTYTON 109-00144	Natural			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6		0.303 in	7.7 mm				20.5 in	54.43 kg	120 lbs	Locking, Standard	130 mm	5.12 "		520 mm	1.706 '
HELLERMANNTYTON 109-00007	Natural			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.102 in	2.6 mm				7.75 in	8.16 kg	18 lbs	Locking, Standard	50 mm	1.97 in		195 mm	0.64 '	7.68 "
HELLERMANNTYTON 109-00105	Black			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.185 in	4.7 mm				8.25 in	22.68 kg	50 lbs	Locking, Standard	50 mm	1.97 in		210 mm	0.689 ft	8.27 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 0.41
