109-00111

Active

HELLERMANNTYTON

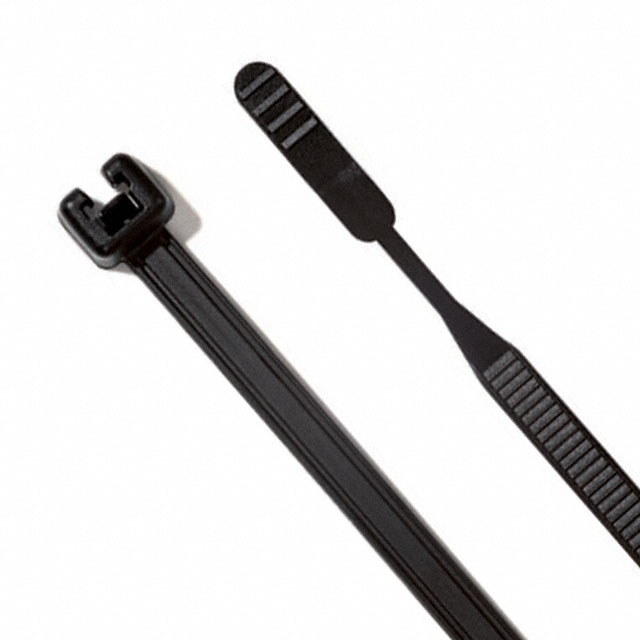

CBL TIE LOCKING BLK 120LB 11.81"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

109-00111

Active

HELLERMANNTYTON

CBL TIE LOCKING BLK 120LB 11.81"

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 1.65

Description

General part information

109-00 Series

Standard, Locking Black 2.76" (70.00mm) 0.303" (7.70mm) 120 lbs (54.43 kg)

Documents

Technical documentation and resources

Datasheet

Materials Guide for Bundling & Securing

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109-00111	109-00 Series

Bundle Diameter	-	0.94 - 130 mm
Bundle Diameter	-	1.97 - 23.8 in
Bundle Diameter [diameter]	2.76 in	1.5 - 4.33 in
Bundle Diameter [diameter]	70 mm	38.1 - 110 mm
Color	Black	Black, Natural
Features	Halogen Free, Pre-Lock	Halogen Free, Pre-Lock, Heat Stabilized
Length - Actual	11.81 "	6.1 - 11.81 in
Length - Actual	300 mm	155 - 300 mm
Length - Actual	0.984 ft	0.509 - 0.984 ft
Length - Actual	-	105 - 520 mm
Length - Actual	-	0.344 - 1.706 ft
Length - Actual	-	4.13 - 11.42 in
Length - Actual	-	1.345 ft
Length - Approximate	11.75 in	4.25 - 20.5 "
Length - Approximate	-	6 - 6.25 in
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	54.43 kg	8.16 - 54.43 kg
Tensile Strength	120 lbs	18 - 120 lbs
Width [x]	0.303 in	0.102 - 0.303 in
Width [x]	7.7 mm	2.6 - 7.7 mm
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

109-00 Series

CBL TIE LOCKING BLK 30LBS 9.84"

Part	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Mounting Type	Material	Features	Width [x]	Width [x]	Length - Actual	Length - Actual	Length - Actual	Length - Approximate	Tensile Strength	Tensile Strength	Wire/Cable Tie Type	Bundle Diameter	Bundle Diameter	Length - Approximate [x]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]
HELLERMANNTYTON 109-00043	Black	65 mm	2.56 in	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.142 in	3.61 mm	250 mm	0.82 ft	9.84 in	9.75 "	13.61 kg	30 lbs	Locking, Standard
HELLERMANNTYTON 109-00012	Natural			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.142 in	3.61 mm	200 mm	0.656 ft	7.87 "	8 in	13.61 kg	30 lbs	Locking, Standard	50 mm	1.97 in
HELLERMANNTYTON 109-00033	Black	40 mm	1.57 in	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.102 in	2.6 mm	155 mm	0.509 ft	6.1 in		8.16 kg	18 lbs	Locking, Standard			6 in
HELLERMANNTYTON 109-00047	Black			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.185 in	4.7 mm				8.25 in	22.68 kg	50 lbs	Locking, Standard	50 mm	1.97 in		210 mm	0.689 ft	8.27 in
HELLERMANNTYTON 109-00049	Black	75 mm	2.95 "	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.185 in	4.7 mm				11.5 in	22.68 kg	50 lbs	Locking, Standard				290 mm	0.951 ft	11.42 "
HELLERMANNTYTON 109-00111	Black	70 mm	2.76 in	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.303 in	7.7 mm	300 mm	0.984 ft	11.81 "	11.75 in	54.43 kg	120 lbs	Locking, Standard
HELLERMANNTYTON 109-00088	Black			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.102 in	2.6 mm				4.25 in	8.16 kg	18 lbs	Locking, Standard	0.94 in	23.8 mm		105 mm	0.344 ft	4.13 "
HELLERMANNTYTON 109-00144	Natural			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6		0.303 in	7.7 mm				20.5 in	54.43 kg	120 lbs	Locking, Standard	130 mm	5.12 "		520 mm	1.706 '
HELLERMANNTYTON 109-00007	Natural			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.102 in	2.6 mm				7.75 in	8.16 kg	18 lbs	Locking, Standard	50 mm	1.97 in		195 mm	0.64 '	7.68 "
HELLERMANNTYTON 109-00105	Black			Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Halogen Free, Pre-Lock	0.185 in	4.7 mm				8.25 in	22.68 kg	50 lbs	Locking, Standard	50 mm	1.97 in		210 mm	0.689 ft	8.27 in
