0830689

Active

Phoenix Contact

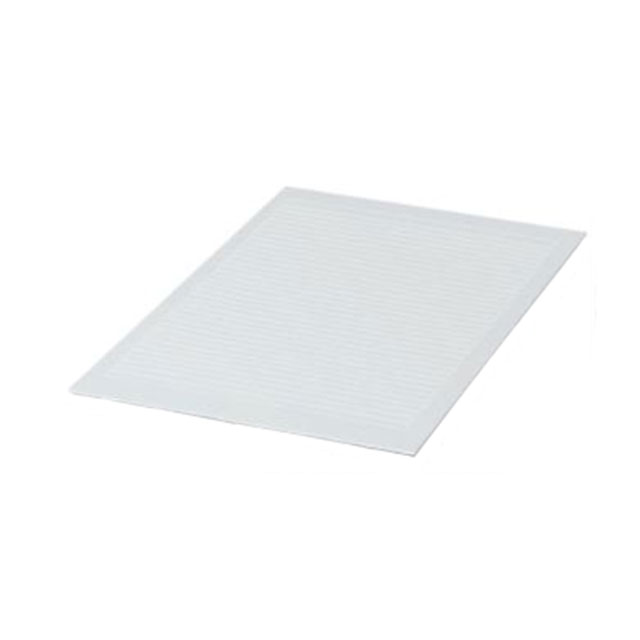

LABEL STANDARD 0.984" X 1" WHITE

Search across all available documentation for this part.

Active

Phoenix Contact

LABEL STANDARD 0.984" X 1" WHITE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0830689	WML Series

Cable Diameter	-	5 mm
Cable Diameter	-	0.197 in
Color	White	White, Yellow
For Use With/Related Products	Office Printing Systems	Office Printing Systems, Thermomark Printer
Label Size	-	0.118 - 0.3 in
Label Size	-	0.094 - 0.98 in
Label Size	-	0.748 - 1.25 in
Label Size [diameter]	0.197 in	0.197 in
Label Size [diameter]	5 mm	3 - 7.5 mm
Label Size [x]	25 mm	2.4 - 25 mm
Label Size [x]	0.984 in	0.984 in
Label Size [y]	25.4 mm	1.25 - 31.8 mm
Label Size [y]	1 in	1 in
Label Type	Standard	Standard
Legend	-	Blank
Material	Polyester	Polyester, Poly-Vinyl Chloride (PVC)
Operating Temperature	-	-50 °C
Operating Temperature	-	110 °C
Size	-	0.09 - 2.4 mm
Size	-	25.4 mm
Type	-	Wire Marker, Cable Tie

LABEL STANDARD 0.512"X0.748" WHT

Part	Material	Label Type	For Use With/Related Products	Label Size [diameter]	Label Size [x]	Label Size [x]	Label Size [diameter]	Label Size [y]	Label Size [y]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [x]	Label Size [y]	Label Size [diameter]	Legend	Size [x]	Size [y]	Cable Diameter [diameter]	Cable Diameter [diameter]	Type
Phoenix Contact 0830687	Polyester	Standard	Office Printing Systems	0.118 in	13 mm	0.512 in	3 mm	0.748 in	19 mm	White
Phoenix Contact 0830674		Standard	Thermomark Printer	0.236 in	12.7 mm	0.5 "	6 mm	1.25 "	1.25 "	Yellow	-50 °C	110 °C
Phoenix Contact 0830673		Standard	Thermomark Printer	0.197 in	2.4 mm	0.094 in	5 mm	1 in	25.4 mm	Yellow	-50 °C	110 °C
Phoenix Contact 0830689	Polyester	Standard	Office Printing Systems		25 mm		5 mm		25.4 mm	White			0.984 in	1 in	0.197 in
Phoenix Contact 0830676	Poly-Vinyl Chloride (PVC)									White	-50 °C	110 °C				Blank	0.09 in, 2.4 mm	25.4 mm	5 mm	0.197 in	Wire Marker, Cable Tie
Phoenix Contact 0830691	Polyester	Standard	Office Printing Systems	0.3 in	25 mm	0.98 in	7.5 mm	1.25 "	31.8 mm	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White Standard Label 0.984" L x 1.000" W (25.00mm x 25.40mm); Cable O.D. 0.197" (5.00mm)
