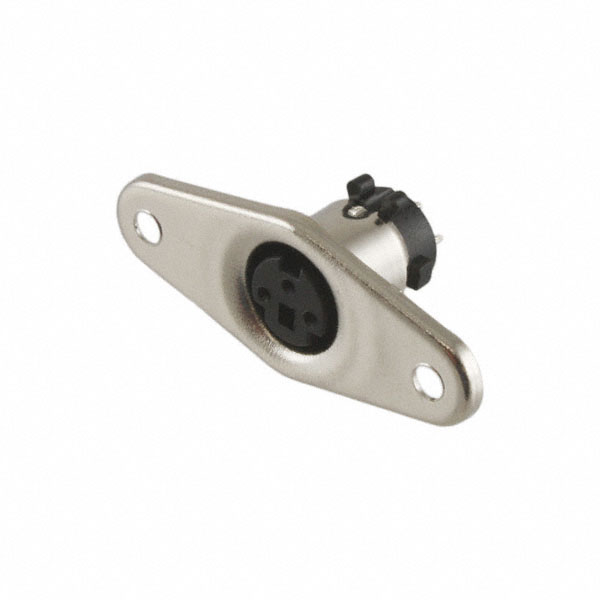

MD-30SN

Obsolete

CUI Devices

CONN RCPT FMALE MINI DIN 3P SLDR

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN RCPT FMALE MINI DIN 3P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MD-30SN

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Iron
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Connector Type	Termination	Contact Finish - Mating	Shell Material	Shell Size - Insert	Primary Material	Color	Orientation	Shielding	Mounting Feature	Shell Finish	Material Flammability Rating	Voltage Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Material
CUI Devices MD-30SN	Receptacle Female Sockets	Solder	Silver	Iron	Mini DIN	Metal	Silver	Keyed	Shielded	Flange	Nickel	UL94 V-0	12 V 100 VAC	Push-Pull	-20 C	105 ░C	Polyamide (PA) Nylon Glass Filled	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder
