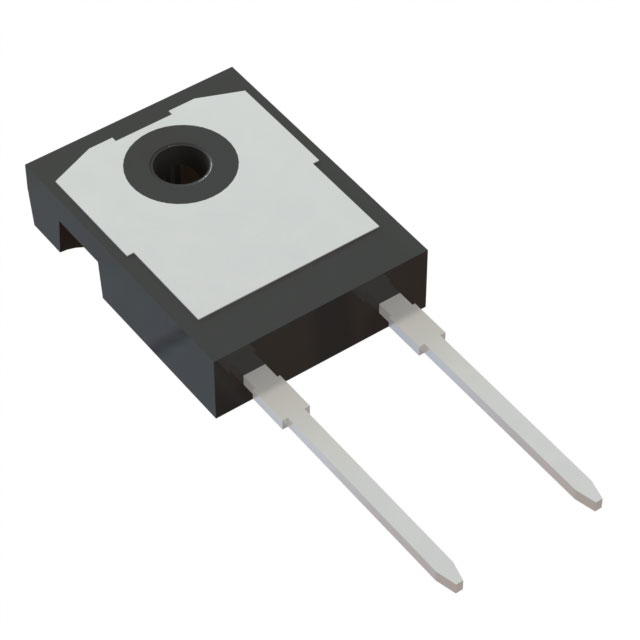

DTH3006PT

Active

Diodes Inc

RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 30A, 600V V(RRM), SILICON, TO-247,

Search across all available documentation for this part.

Active

Diodes Inc

RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 30A, 600V V(RRM), SILICON, TO-247,

Technical Specifications

Parameters and characteristics for this part

Specification	DTH3006PT

Capacitance @ Vr, F	155 pF
Current - Average Rectified (Io)	30 A
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-247-2
Reverse Recovery Time (trr)	45 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-247-2 (Type HE)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	2.4 V

30A SUPER-FAST EPITAXIAL RECTIFIER

Part	Current - Average Rectified (Io)	Mounting Type	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Speed	Capacitance @ Vr, F	Package / Case	Reverse Recovery Time (trr)
Diodes Inc DTH3006PT	30 A	Through Hole	Standard	2.4 V	100 µA	175 ░C	-55 C	600 V	TO-247-2 (Type HE)	200 mA 500 ns	155 pF	TO-247-2	45 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Suitable for switching power supplies and power switching circuit applications.
