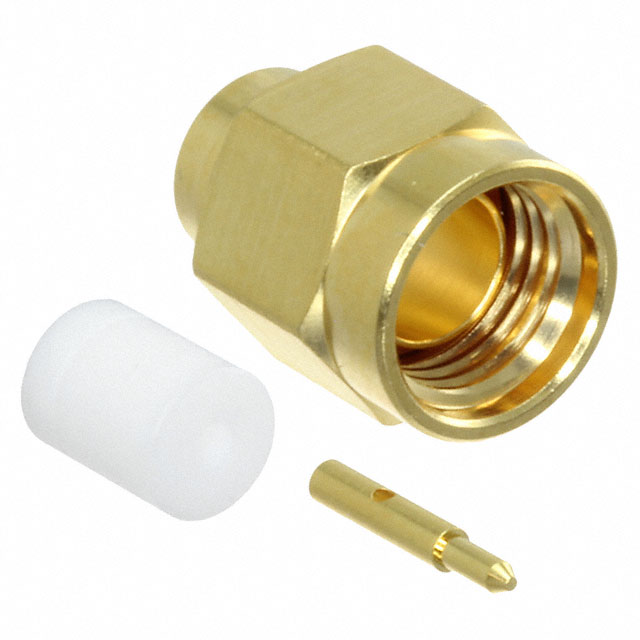

32S102-272L5

Active

Rosenberger

CONN SMA PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	32S102-272L5

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Connector Type	Contact Termination	Connector Style	Dielectric Material	Center Contact Material	Body Material	Center Contact Plating	Frequency - Max [Max]	Housing Color	Includes	Shield Termination	Body Finish	Number of Ports	Impedance	Mounting Type	Voltage Rating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]
Rosenberger 32S102-272L5	Male Pin Plug	Solder	SMA	Polytetrafluoroethylene (PTFE)	Brass	Beryllium Copper	Gold	18 GHz	Gold	1 Connector 1 Contact 1 Ferrule	Solder	Gold	1	50 Ohms	Free Hanging (In-Line)	480 V	500	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
