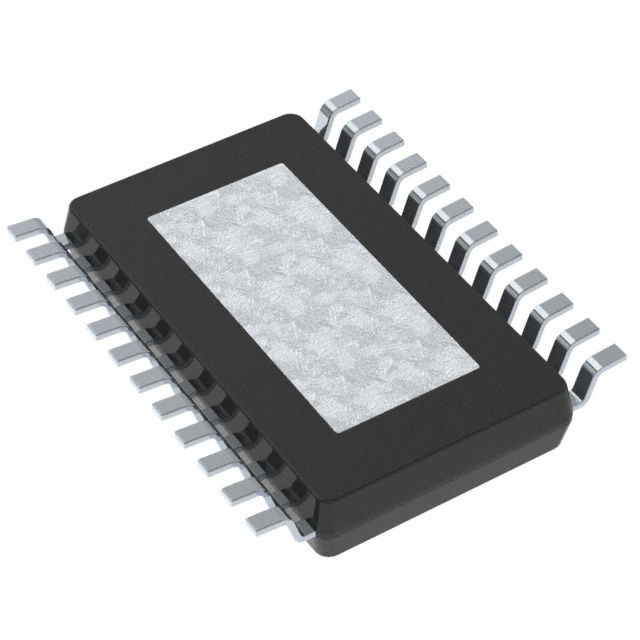

LNBH23TPPR

Obsolete

STMicroelectronics

IC REG CONV SAT 1OUT POWERSSO-24

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC REG CONV SAT 1OUT POWERSSO-24

Technical Specifications

Parameters and characteristics for this part

Specification	LNBH23TPPR

Applications	Converter, Analog and Digital Satellite STB Receivers/SatTV
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	24-PowerBSOP
Package / Case [y]	7.5 mm
Package / Case [y]	0.295 in
Supplier Device Package	PowerSSO-24
Voltage - Input [Max]	15 V
Voltage - Input [Min]	8 V
Voltage - Output	13.4 V, 18.5 V

Part	Number of Outputs	Voltage - Output	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Package / Case [y]	Package / Case	Package / Case [y]	Operating Temperature [Max]	Supplier Device Package
STMicroelectronics LNBH23TPPR	1	13.4 V 18.5 V	Converter Analog and Digital Satellite STB Receivers/SatTV	15 V	8 V	Surface Mount	7.5 mm	24-PowerBSOP	0.295 in	85 °C	PowerSSO-24
STMicroelectronics LNBH23QTR	1	13.4 V 18.5 V	Converter Analog and Digital Satellite STB Receivers/SatTV	15 V	8 V	Surface Mount		32-VFQFN Exposed Pad		85 °C	32-QFN (5x5)
STMicroelectronics LNBH23LQTR	1	13.4 V 18.4 V	Converter Analog and Digital Satellite STB Receivers/SatTV	15 V	8 V	Surface Mount		32-VFQFN Exposed Pad		85 °C	32-QFN (5x5)
STMicroelectronics LNBH23TQTR	1	13.4 V 18.5 V	Converter Analog and Digital Satellite STB Receivers/SatTV	15 V	8 V	Surface Mount		32-VFQFN Exposed Pad		85 °C	32-QFN (5x5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- Converter, Analog and Digital Satellite STB Receivers/SatTV Voltage Regulator IC 1 Output PowerSSO-24

Technical documentation and resources

No documents available
