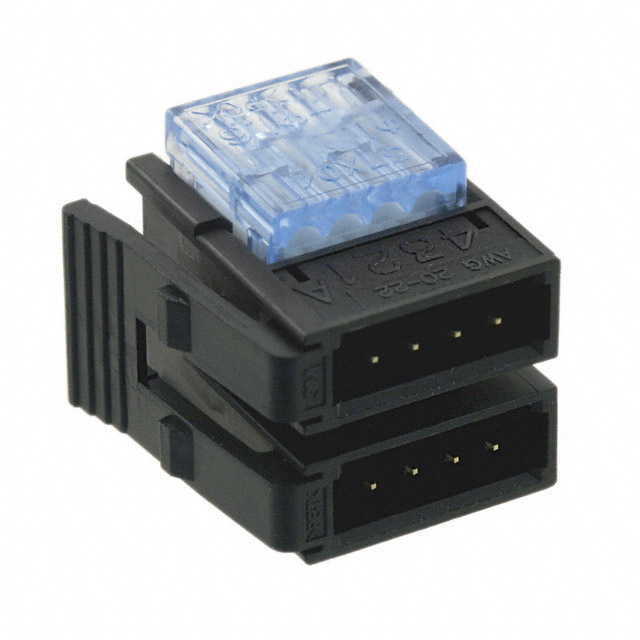

37108-2165-0W0 FL
Active3M (TC)
CONN PLUG 8POS IDC 20-22AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
37108-2165-0W0 FL
Active3M (TC)
CONN PLUG 8POS IDC 20-22AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 37108-2165-0W0 FL |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 6.5 mm |
| Row Spacing | 0.256 in |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 20 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.68 | |
| 10 | $ 5.16 | |||
| 25 | $ 4.88 | |||
| 50 | $ 4.77 | |||
| 100 | $ 4.54 | |||
| 300 | $ 3.97 | |||
| 500 | $ 3.86 | |||
| 1000 | $ 3.29 | |||
| 2500 | $ 3.07 | |||
Description
General part information
37108 Series
8 Position Rectangular Plug Connector IDC Gold 20-22 AWG
