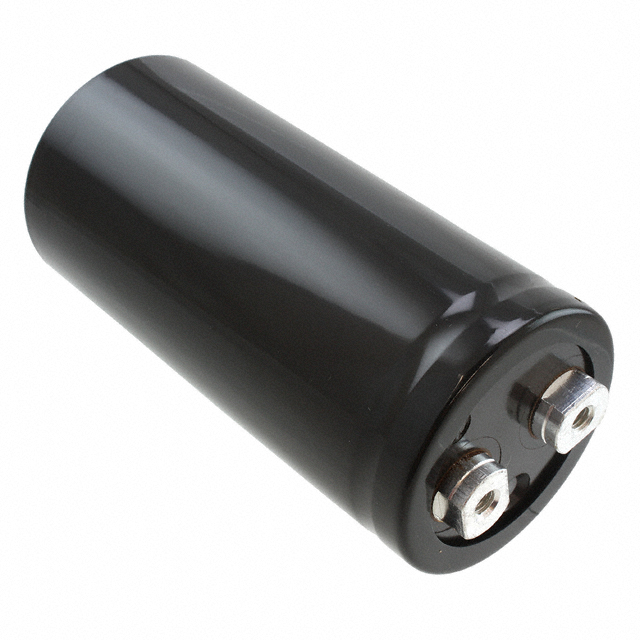

Specification	ALS40A103KF100

Applications	General Purpose
Capacitance	10000 µF
ESR (Equivalent Series Resistance)	21 mOhm
Height - Seated (Max)	4.213 in
Impedance	18 mOhm
Lead Spacing	0.874 in
Lifetime	7000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	11.5 A, 10.9 A
Size / Dimension Diameter	2.008 in
Tolerance	20 %
Voltage - Rated	100 VAC/DC

ALS40A Series

Part	Applications	Ripple Current	Mounting Type	Impedance	Tolerance	Capacitance	Lead Spacing	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Diameter	Height - Seated (Max)	Voltage - Rated	Polarization	Lifetime	Package / Case	ESR (Equivalent Series Resistance)
KEMET ALS40A472DB063	General Purpose	6.7 A 7.5 A	Chassis Mount	22 mOhms	20 %	4700 µF	0.504 in	-40 °C	105 °C	1.417 in	2.52 in	63 V	Polar	6000 Hrs	Can - Screw Terminals Radial	27 mOhm
KEMET ALS40A473DF025	General Purpose	14 A 14.7 A	Chassis Mount	8 mOhms	20 %	47000 µF	0.504 in	-40 °C	105 °C	1.417 in	4.134 in	25 VAC	Polar	6000 Hrs	Can - Screw Terminals Radial	9 mOhm
KEMET ALS40A103KF100	General Purpose	10.9 A 11.5 A	Chassis Mount	18 mOhm	20 %	10000 µF	0.874 in	-40 °C	105 °C	2.008 in	4.213 in	100 VAC/DC	Polar	7000 Hrs	Can - Screw Terminals Radial	21 mOhm
KEMET ALS40A472DF100	General Purpose	8.1 A 9.3 A	Chassis Mount	21 mOhms	20 %	4700 µF	0.504 in	-40 °C	105 °C	1.417 in	4.134 in	100 VAC/DC	Polar	6000 Hrs	Can - Screw Terminals Radial	26 mOhm
KEMET ALS40A221DE450	General Purpose	2.5 A 6.2 A	Chassis Mount	242 mOhm	20 %	220 µF	0.504 in	-40 °C	105 °C	1.417 in	3.228 in	450 V	Polar	6000 Hrs	Can - Screw Terminals Radial	487 mOhm
KEMET ALS40A104KF025	General Purpose	16.4 A 16.7 A	Chassis Mount	8 mOhms	20 %	100000 µF	0.874 in	-40 °C	105 °C	2.008 in	4.213 in	25 VAC	Polar	7000 Hrs	Can - Screw Terminals Radial	9 mOhm
