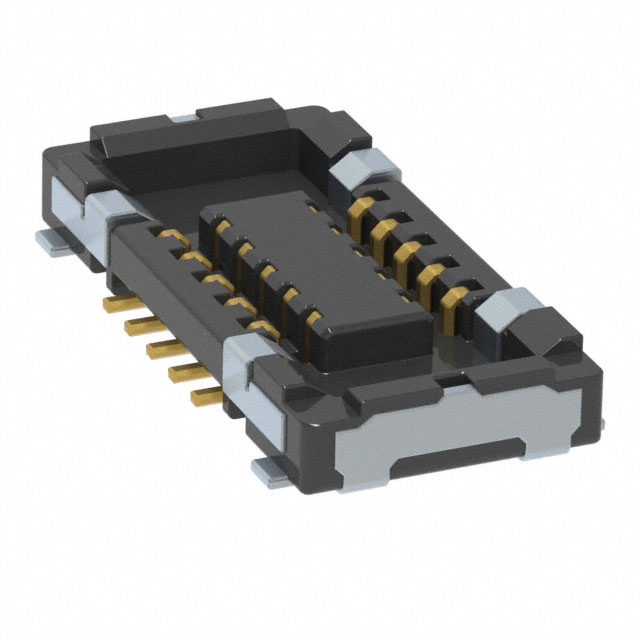

AXG710047

Obsolete

Panasonic Electric Works

CONN SOCKET 10POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 10POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXG710047

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.023 in
Height Above Board	0.59 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Mounting Type	Connector Type	Number of Positions	Number of Rows	Mated Stacking Heights	Contact Finish	Features	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]
Panasonic Electric Works AXG710047	Surface Mount	Socket Center Strip Contacts	10	2	0.6 mm	Gold	Solder Retention	0.023 in	0.59 mm	0.35 mm	0.014 in
