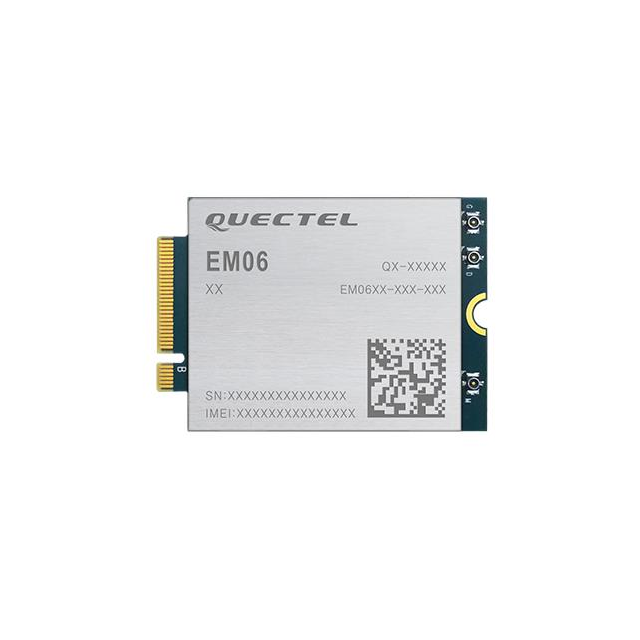

EM06ELA-512-SGAS

Obsolete

Quectel

RF TXRX MOD CEL/NAV CARD

Search across all available documentation for this part.

Obsolete

Quectel

RF TXRX MOD CEL/NAV CARD

Technical Specifications

Parameters and characteristics for this part

Specification	EM06ELA-512-SGAS

Antenna Type	Antenna Not Included
Current - Receiving	22.1 mA
Current - Transmitting	22.1 mA
Data Rate	300 Mbps
Mounting Type	Card Edge
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Package / Case	Module
Protocol	GPS, WCDMA, UMTS, GNSS, GLONASS, HSPA+, Galileo, Beidou, LTE
RF Family/Standard	Cellular, Navigation
Serial Interfaces	PCM, I2C, USB
Utilized IC / Part	MDM9240-1
Voltage - Supply [Max]	4.4 V
Voltage - Supply [Min]	3.135 V

Part	Protocol	Mounting Type	Serial Interfaces	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Receiving	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Package / Case	Antenna Type	Current - Transmitting	Data Rate
Quectel EM06JLA-512-SGAD	Beidou Galileo GLONASS GNSS GPS HSPA+ LTE UMTS WCDMA	Card Edge	I2C PCM USB	3.135 V	4.4 V	19.5 mA	Cellular Navigation	70 °C	-30 ░C	MDM9240-1	Module	Antenna Not Included	19.5 mA	300 Mbps
Quectel EM06ELA-512-SGAS	Beidou Galileo GLONASS GNSS GPS HSPA+ LTE UMTS WCDMA	Card Edge	I2C PCM USB	3.135 V	4.4 V	22.1 mA	Cellular Navigation	70 °C	-30 ░C	MDM9240-1	Module	Antenna Not Included	22.1 mA	300 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, HSPA+, LTE, UMTS, WCDMA Transceiver Module Antenna Not Included Card Edge
