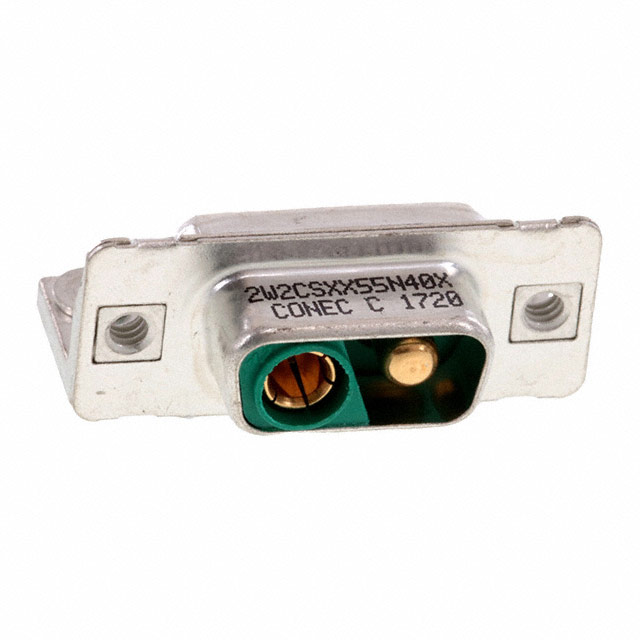

302W2CSXX55N40X

Active

Amphenol CONEC

CONN RCPT FEMALE SOCKETS 2POS RA

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN RCPT FEMALE SOCKETS 2POS RA

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Shell Size, Connector Layout	Number of Rows	Number of Positions	Contact Type	Connector Style	Mounting Type	Note	Color	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Flange Feature	Contact Finish	Voltage Rating	Current Rating (Amps)	Termination	Material Flammability Rating	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing
Amphenol CONEC 302W2CSXX69F40X	Receptacle Female Sockets
Amphenol CONEC 302W2CSXX99L20X	Receptacle for Female Contacts	1 (DE E) 2V2 2W2C
Amphenol CONEC 302W2CSXX72E40X	Receptacle Female Sockets
Amphenol CONEC 302W2CSXX99A10X	Receptacle for Female Contacts	1 (DE E) 2V2 2W2C	1	2	Coax Power	Combo D-Sub	Free Hanging (In-Line)	Contacts Not Included	Green	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)
Amphenol CONEC 302W2CSXX71E40X	Receptacle Female Sockets
Amphenol CONEC 302W2CSXX55N40X	Receptacle Female Sockets					Combo D-Sub
Amphenol CONEC 302W2CSXX69E40X	Receptacle Female Sockets	1 (DE E) 2V2 2W2C	1	2	Power	Combo D-Sub			Green	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled		Gold	250 VDC	20 A	Solder	UL94 V-0	Copper Alloy
Amphenol CONEC 302W2CSXX56N40X	Female Sockets Male Pins Receptacle	1 (DE E) 2V2 2W2C	1	2	Power	Combo D-Sub	Board Edge Right Angle Through Hole		Green	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	Gold	250 VDC	20 A	Solder	UL94 V-0	Copper Alloy	0.76 Ám	30 Áin	11.65 mm	0.459 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 16.28

General part information

Position D-Sub, Combo Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available
