888-30-005-20-002000

Active

Mill-Max Manufacturing Corp.

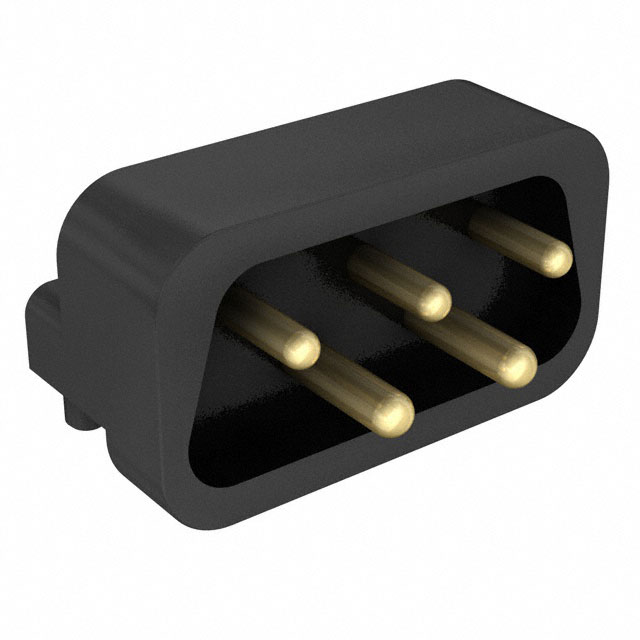

CONN HEADER R/A 5POS

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN HEADER R/A 5POS

Technical Specifications

Parameters and characteristics for this part

Specification	888-30-005-20-002000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post [x]	1.5 mm
Contact Length - Post [x]	0.059 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.315 in
Insulation Height	8 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	2
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Fastening Type	Mounting Type	Contact Finish - Mating	Connector Type	Insulation Height	Insulation Height	Number of Positions Loaded	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Termination	Contact Shape	Number of Rows	Insulation Material	Features
Mill-Max Manufacturing Corp. 888-30-005-20-002000	1.5 mm	0.059 in	Male Pin	Push-Pull	Through Hole Right Angle	Gold	Header	0.315 in	8 mm	All	Shrouded - 4 Wall	30 Áin	0.76 Ám	Black	Solder	Circular	2	Polyamide (PA46) Nylon 4/6	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 5 (3 + 2 Power) position
