Q-1V03Z000R048i

Active

Amphenol Custom Cable

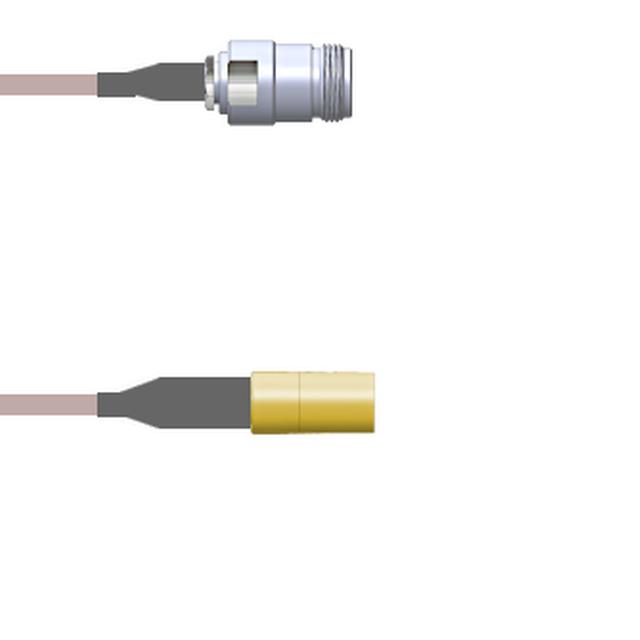

CBL ASSY SMB-NTYPE PLUG-JACK 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V03Z000R048i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-JACK 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V03Z000R048i

1st Connector	SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1V03Z0 Series

Part	Cable Type	1st Connector Mounting Type	Overall Impedance	2nd Connector Mounting Type	2nd Contact Gender	1st Connector	Length	Length	Length	2nd Connector	Features	Frequency - Max [Max]	Color	1st Contact Gender	Style	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1V03Z000R108i	RG-316 DB	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	SMB Plug	2.7 m	9 ft	108 in	N-Type Jack	Shielded	4 GHz	Copper	Female	SMB to N-Type
Amphenol Custom Cable Q-1V03Z000R009i	RG-316 DB	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	SMB Plug	228.6 mm		9 "	N-Type Jack	Shielded	4 GHz	Copper	Female	SMB to N-Type
Amphenol Custom Cable Q-1V03Z000R003i	RG-316 DB	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	SMB Plug	76.2 mm		3 in	N-Type Jack	Shielded	4 GHz	Copper	Female	SMB to N-Type
Amphenol Custom Cable Q-1V03Z000R006i	RG-316 DB	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	SMB Plug	152.4 mm		6 in	N-Type Jack	Shielded	4 GHz	Copper	Female	SMB to N-Type
Amphenol Custom Cable Q-1V03Z000R.25M	RG-316 DB	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	SMB Plug				N-Type Jack	Shielded	4 GHz	Copper	Female	SMB to N-Type	9.843 "	250 mm
Amphenol Custom Cable Q-1V03Z000R036i	RG-316 DB	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	SMB Plug	91.44 cm		36 in	N-Type Jack	Shielded	4 GHz	Copper	Female	SMB to N-Type
Amphenol Custom Cable Q-1V03Z000R012i	RG-316 DB	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	SMB Plug	304.8 mm		12 "	N-Type Jack	Shielded	4 GHz	Copper	Female	SMB to N-Type
Amphenol Custom Cable Q-1V03Z000R048i	RG-316 DB	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	SMB Plug	1200 mm	4 ft	48 in	N-Type Jack	Shielded	4 GHz	Copper	Female	SMB to N-Type
Amphenol Custom Cable Q-1V03Z000R060i	RG-316 DB	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	SMB Plug	1.5 m	5 ft	5 '	N-Type Jack	Shielded	4 GHz	Copper	Female	SMB to N-Type
Amphenol Custom Cable Q-1V03Z000R018i	RG-316 DB	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	SMB Plug				N-Type Jack	Shielded	4 GHz	Copper	Female	SMB to N-Type		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 317.49
		25	$ 313.15
		50	$ 308.82
		100	$ 304.48
		250	$ 300.14

Description

General part information

Q-1V03Z0 Series

Cable Assembly Coaxial SMB to N-Type RG-316 DB 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
