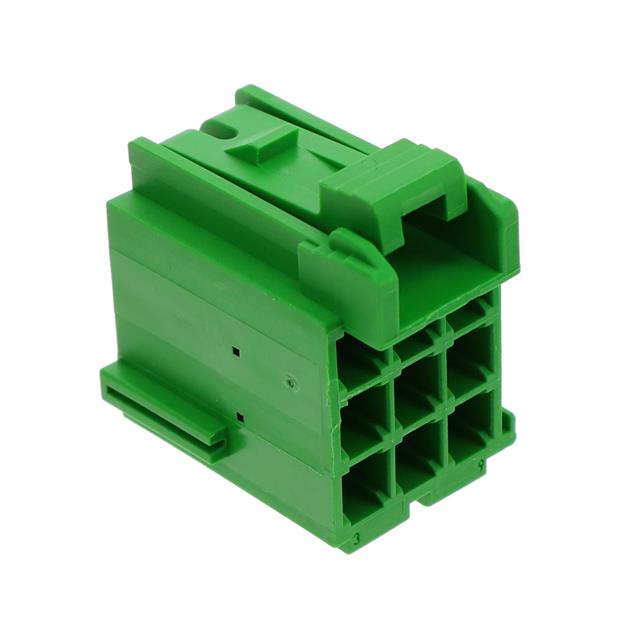

1-967621-6
ActiveTE Connectivity AMP Connectors
JUN-POW-TIM GEH 9P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967621-6
ActiveTE Connectivity AMP Connectors
JUN-POW-TIM GEH 9P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-967621-6 | 967621 Series |
|---|---|---|
| Color | Green | Green, Brown, Blue |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Holder | Latch Holder, Latch Lock |
| Features | - | Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 9 | 9 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 0.217 in | 0.217 in |
| Row Spacing | 5.5 mm | 5.5 - 5.51 mm |
| Row Spacing | - | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.39 | |
| 10 | $ 1.18 | |||
| 25 | $ 1.13 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.06 | |||
| 250 | $ 0.96 | |||
| 500 | $ 0.87 | |||
| 1200 | $ 0.77 | |||
| 3600 | $ 0.70 | |||
967621 Series
JUN-POW-TIM GEH 9P
| Part | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Termination | Number of Rows | Pitch [x] | Pitch [x] | Mounting Type | Insulation Material | Fastening Type | Contact Type | Row Spacing | Row Spacing | Connector Type | Row Spacing [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967621-6 | 9 | 100 °C | -30 ░C | Green | Crimp | 3 | 5 mm | 0.197 in | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Latch Holder | Female Socket | 0.217 in | 5.5 mm | Receptacle | ||
TE Connectivity AMP Connectors 1-967621-3 | 9 | 100 °C | -30 ░C | Brown | Crimp | 3 | 5 mm | 0.197 in | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Latch Holder | Female Socket | 0.217 in | 5.5 mm | Receptacle | ||
TE Connectivity AMP Connectors 1-967621-2 | 9 | 100 °C | -30 ░C | Blue | Crimp | 3 | 5 mm | 0.197 in | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Latch Lock | Female Socket | 5.51 mm | Receptacle | 0.217 in | Terminal Position Lock (TPA) |
Description
General part information
967621 Series
9 Rectangular Connectors - Housings Receptacle Green 0.197" (5.00mm)
Documents
Technical documentation and resources
