DMS-BZL3-C

Active

Murata Power Solutions Inc.

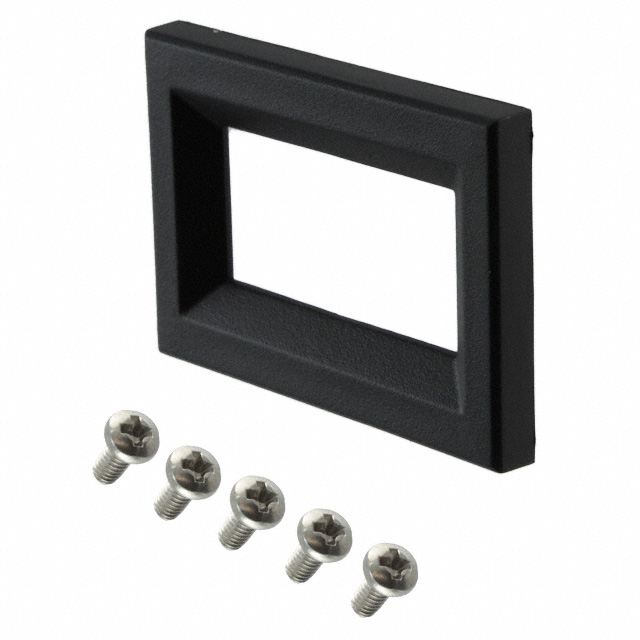

BEZEL ASSEMBLY FOR PANEL METER

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

BEZEL ASSEMBLY FOR PANEL METER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DMS-BZL3-C	DMS-BZL Series

Accessory Type	-	Bezel
For Use With/Related Products	-	DMS-20 Series, DMS-30/40 Series
Includes	-	Gasket, Hardware, Bezel
null		-
Specifications	-	46.38 - 64.77 mm
Specifications	-	32.26 - 32.51 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	6	$ 4.59
Digikey	Box	1	$ 4.62
		25	$ 4.04

BEZEL, DMS-20 SERIES PANEL METERS, EPDM RUBBER GASKET

Part	For Use With/Related Products	Includes	Specifications [x]	Specifications [y]	Accessory Type
Murata Power Solutions Inc. DMS-BZL4-C	DMS-20 Series	Bezel, Gasket, Hardware	46.38 mm	32.51 mm	Bezel
Murata Power Solutions Inc. DMS-BZL3-C
Murata Power Solutions Inc. DMS-BZL2-C
Murata Power Solutions Inc. DMS-BZL4-C
Murata Power Solutions Inc. DMS-BZL3-C	DMS-20 Series	Bezel, Hardware	46.38 mm	32.51 mm	Bezel
Murata Power Solutions Inc. DMS-BZL2-C	DMS-30/40 Series	Bezel, Gasket, Hardware	64.77 mm	32.26 mm	Bezel

General part information

Bezel Rectangular 46.38mm x 32.51mm Outside Dim
