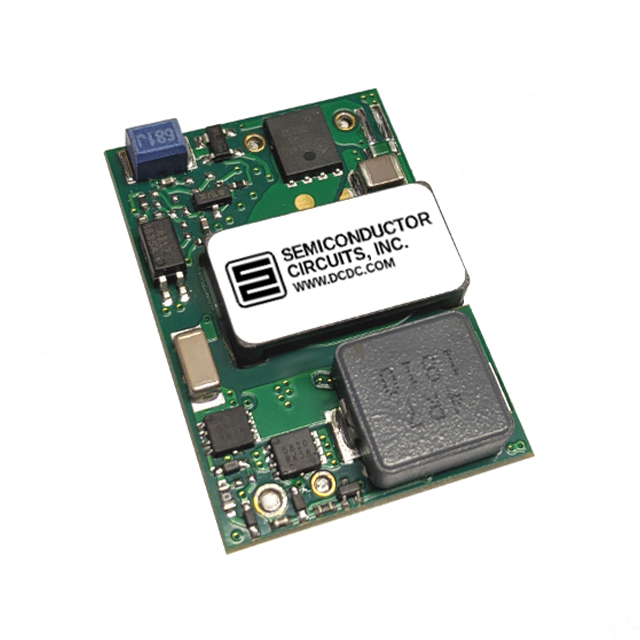

CPT20A48N

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 5V 100W

Search across all available documentation for this part.

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 5V 100W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPT20A48N	CPT20A48 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	20 A	20 A
Efficiency	93 %	93 %
Features	Remote On/Off, Adjustable Output, Remote Sense	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Sixteenth Brick	Sixteenth Brick
Power (Watts)	100 W	100 W
Size / Dimension [x]	1.3 "	1.3 "
Size / Dimension [x]	33 mm	33 mm
Size / Dimension [y]	22.9 mm	22.9 mm
Size / Dimension [y]	0.9 "	0.9 "
Size / Dimension [z]	0.37 in	0.37 in
Size / Dimension [z]	9.5 mm	9.5 mm
Supplier Device Package	Sixteenth Brick	Sixteenth Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	5 V	5 V

DC DC CONVERTER 5V 100W

Part	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Applications	Number of Outputs	Supplier Device Package	Current - Output (Max) [Max]	Package / Case	Control Features	Features	Voltage - Output 1	Approval Agency	Voltage - Input (Max) [Max]	Type	Power (Watts)	Mounting Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]
Semiconductor Circuits, Inc. CPT20A48N	93 %	0.37 in	1.3 "	9.5 mm	22.9 mm	33 mm	0.9 "	ITE (Commercial)	1	Sixteenth Brick	20 A	Sixteenth Brick	Active Low, Enable	Adjustable Output, Remote On/Off, Remote Sense	5 V	CSA, TUV, UL	75 V	Isolated Module	100 W	Through Hole	2250 VDC	85 °C	-40 °C	36 V
Semiconductor Circuits, Inc. CPT20A48P	93 %	0.37 in	1.3 "	9.5 mm	22.9 mm	33 mm	0.9 "	ITE (Commercial)	1	Sixteenth Brick	20 A	Sixteenth Brick	Active High, Enable	Adjustable Output, Remote On/Off, Remote Sense	5 V	CSA, TUV, UL	75 V	Isolated Module	100 W	Through Hole	2250 VDC	85 °C	-40 °C	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 20A 36V - 75V Input
