EN2P5M26P

Active

Switchcraft Inc.

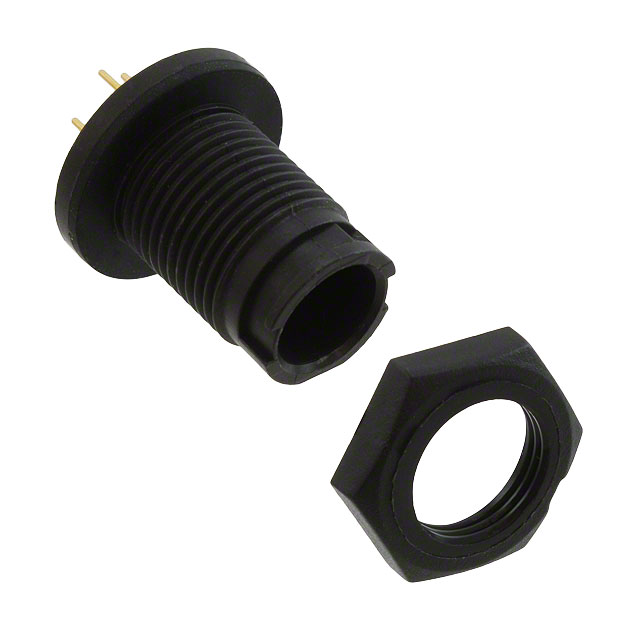

CONN RCPT MALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 5POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.54

General part information

5 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN2P5M26P	EN2P5M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder, Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE 5POS GOLD SOLDER

Part	Orientation	Insert Material	Termination	Shielding	Mounting Feature	Contact Material	Mounting Type	Fastening Type	Ingress Protection	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Applications	Color	Connector Type	Contact Finish - Mating	Voltage Rating
Switchcraft Inc. EN2P5M26P	Keyed	Elastomer	Solder	Unshielded	Bulkhead - Front Side Nut	Copper Alloy	Panel Mount, Through Hole	Bayonet Lock	IP66, IP67, IP68	Plastic	85 °C	-40 °C	UL94 V-0	Communication Systems, Industrial, Marine, Medical	Black	Male Pins, Receptacle	Gold	125 VAC
Switchcraft Inc. EN2P5M26	Keyed	Elastomer	Crimp, Solder Cup	Unshielded	Bulkhead - Front Side Nut	Copper Alloy		Bayonet Lock	IP66, IP67, IP68	Plastic	85 °C	-40 °C	UL94 V-0	Communication Systems, Industrial, Marine, Medical	Black	Male Pins, Receptacle	Gold	125 VAC
Switchcraft Inc. EN2P5M26PK	Keyed	Elastomer	Solder	Unshielded	Bulkhead - Front Side Nut	Copper Alloy	Panel Mount, Through Hole	Bayonet Lock	IP66, IP67, IP68	Plastic	85 °C	-40 °C	UL94 V-0	Communication Systems, Industrial, Marine, Medical	Black	Male Pins, Receptacle	Gold	125 VAC
