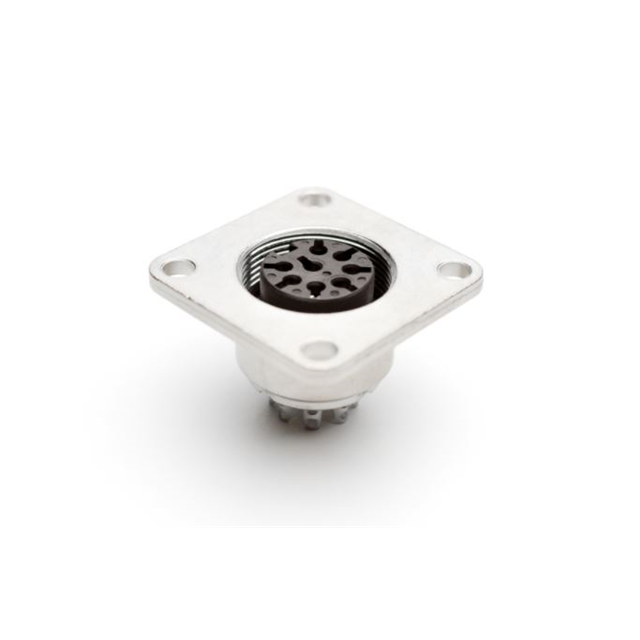

Specification	C091 31T008 100 2

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Current Rating	7 A
Fastening Type	Threaded
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP69K, IP65, IP67
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	8
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-8
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	60 V

C091 31T008 Series

Part	Connector Type	Shell Material	Shell Finish	Color	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Termination	Number of Positions	Current Rating	Orientation	Shell Size - Insert	Contact Finish - Mating	Ingress Protection Description	Ingress Protection IP Rating	Mounting Type	Shielding	Fastening Type	Mounting Feature	Primary Material
Amphenol Tuchel Industrial C091 31T008 100 2	Female Sockets Receptacle	Die Cast	Nickel	Silver	100 °C	-40 °C	60 V	Solder Cup	8	7 A	Keyed	M16-8	Silver	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	Panel Mount	Shielded	Threaded	Flange	Metal
