8772ZH 0601000

Active

Belden Inc.

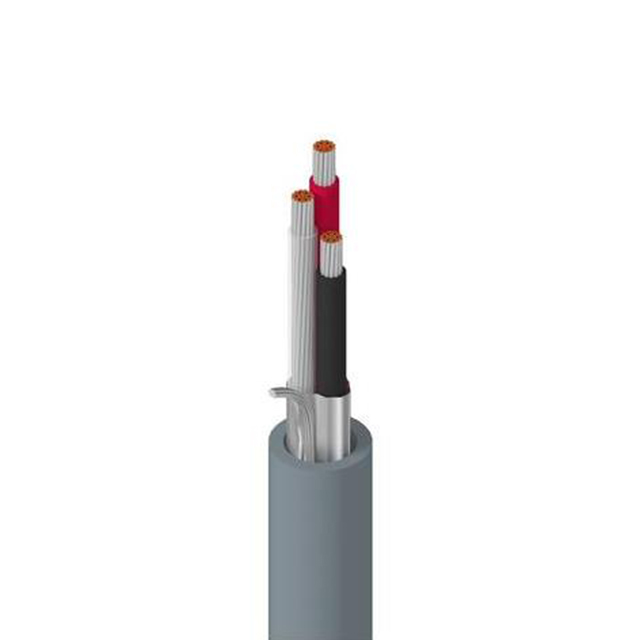

CABLE 3COND 20AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 20AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	8772ZH 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Ratings	UL Style 21307
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	20 AWG

Part	Length	Length	Wire Gauge	Jacket Color	Conductor Insulation	Features	Conductor Material	Cable Type	Shield Type	Ratings	Shield Coverage	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 8772ZH 0601000	1000 ft	304.8 m	20 AWG	Chrome	Polyethylene (PE)	Drain Wire	Copper Tinned	Multi-Conductor	Foil	UL Style 21307	100 %	Aluminum	0.838 mm	0.033 in	300 V	3	28	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.02

General part information

3 Conductor Multi-Conductor Cable Chrome 20 AWG Foil 1000.0' (304.8m)

Technical documentation and resources
