4808-3000-CP
ActiveIC & COMPONENT SOCKET, 8 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 7.62 MM, PHOSPHOR BRONZE
Deep-Dive with AI
Search across all available documentation for this part.
4808-3000-CP
ActiveIC & COMPONENT SOCKET, 8 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 7.62 MM, PHOSPHOR BRONZE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4808-3000-CP |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 35.4 µin |
| Contact Finish Thickness - Mating | 0.9 µm |
| Contact Finish Thickness - Post | 35 µin |
| Contact Finish Thickness - Post | 0.9 µm |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.70 | |
| 10 | $ 0.54 | |||
| 25 | $ 0.48 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.32 | |||
| 2500 | $ 0.29 | |||
Description
General part information
4808 Series

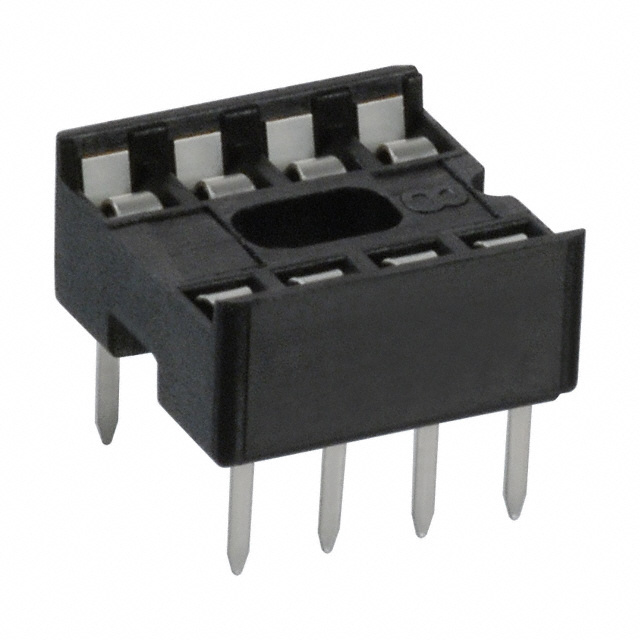

The 4808-3000-CP is a 8-way stamped and formed Dual-wipe DIP Socket with tin-plated phosphor bronze contacts. This 4800 series socket comes with glass filled polyester insulation, 0.300-inch row spacing and straight tail. Dual leaf, high compression contact provides reliable termination.
