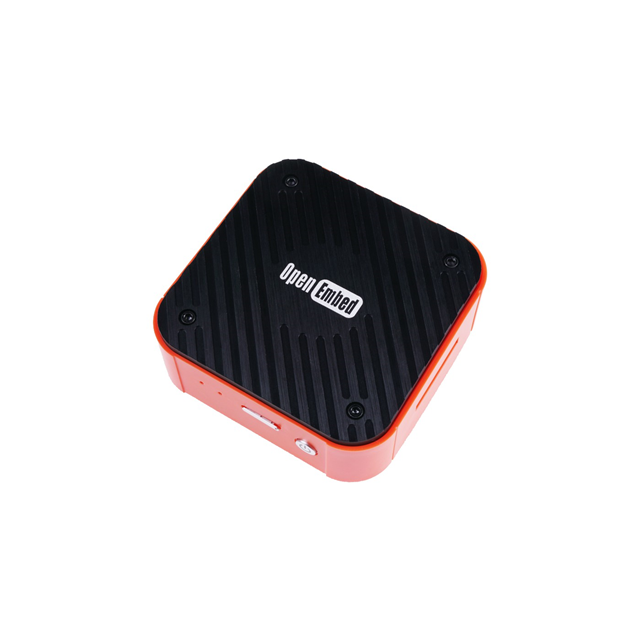

102991560

Unknown

Seeed Technology Co., Ltd

SBC 1.5GHZ 4 CORE 1GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

102991560

Unknown

Seeed Technology Co., Ltd

SBC 1.5GHZ 4 CORE 1GB/0GB RAM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 136.25

Description

General part information

10299 Series

Single Board Computer 1.5GHz 4 Core 1GB/0GB RAM Raspberry Pi CM4 ARM Cortex-A72

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102991560	10299 Series

Contents	-	SD Card, Power Supply, microSD Card
Contents	-	32 GB
Core Processor	Raspberry Pi CM4 ARM Cortex-A72	Broadcom BCM2711 Arm Cortex-A72, Raspberry Pi CM4 ARM Cortex-A72, ARM Cortex-A7, Broadcom BCM2835 ARM1176JZF-S, NXP i.MX6ULL ARM Cortex A7, Rockchip RK3288, ARM Cortex A17
Digital I/O Lines	-	54 - 96
Ethernet	2, 100, 10, 1000	2 - 1000
Ethernet	RJ45	GbE, RJ45, (1)
Ethernet	-	10 Mbps
Ethernet	-	100 Mbps
Expansion Site/Bus	mPCIe	GPIO, PCIe, mPCIe, I2C, UART, SPI, LCD, SD, I2S, PWM, SDIO, CVBS, HDMI, RGB, VGA
Form Factor	-	Pico-ITX
Number of Cores	4	1 - 4
Operating Temperature	-	-10 °C
Operating Temperature	-	158 °F
Operating Temperature [Max]	60 °C	60 - 80 C
Operating Temperature [Min]	0 °C	-20 - 0 °C
RAM Capacity/Installed	0 GB, 1 GB	0 - 512 GB
RAM Capacity/Installed	-	1GB/1GB
RS-232 (422, 485)	-	2
Size / Dimension [x]	98.04 mm	55 - 123.95 mm
Size / Dimension [x]	3.86 in	2.17 - 4.88 "
Size / Dimension [y]	3.86 in	1.57 - 3.86 "
Size / Dimension [y]	98.04 mm	40 - 98.04 mm
Speed	1.5 GHz	1 - 800 GHz
Storage Interface	M.2, eMMC	SD, eMMC, M.2, SDIO, eMMC/SD, NAND - Flash, microSD
USB	USB 2.0 (2)	USB 2.0 (1), USB 2.0 (2), USB 2.0 Mini (1), USB OTG Type C (1), USB Type A (1), USB OTG (1)
Video Outputs	HDMI	DSI, CSI, HDMI, VGA, MIPI-CSI, LVDS, eDP, CVBS, RGB
Watchdog Timer	False	False, True

10299 Series

SBC 1.5GHZ 4 CORE 1GB/0GB RAM

Part	USB	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Video Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Cores	Ethernet	Storage Interface	RAM Capacity/Installed	Core Processor	Expansion Site/Bus	Ethernet	Digital I/O Lines	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Ethernet [Min]	Ethernet [Max]	Contents	RS-232 (422, 485)	Form Factor	Contents	RAM Capacity/Installed
Seeed Technology Co., Ltd 102991380	USB 2.0 (1)	80 C	0 °C	1.5 GHz	CSI, DSI, HDMI	55 mm	1.57 "	2.17 "	40 mm	4	GbE	eMMC, SD	0 GB, 1 GB	Broadcom BCM2711 Arm Cortex-A72	GPIO, PCIe
Seeed Technology Co., Ltd 102991561	USB 2.0 (2)	60 °C	0 °C	1.5 GHz	HDMI	98.04 mm	3.86 in	3.86 in	98.04 mm	4	RJ45	eMMC, M.2	0 GB, 4 GB	Raspberry Pi CM4 ARM Cortex-A72	mPCIe	2, 10, 100, 1000
Seeed Technology Co., Ltd 102990033	USB 2.0 (2), USB 2.0 Mini (1)			1 GHz	HDMI, VGA	109.98 mm	3.15 in	4.33 in	80.01 mm	2			2 GB	ARM Cortex-A7		10 Mbps, 100 Mbps, 1000 Mbps	54	-10 °C	158 °F
Seeed Technology Co., Ltd 102990039	USB 2.0 (2)			700 MHz	DSI, HDMI					1	RJ45	eMMC/SD, SDIO	0 GB, 512 MB	Broadcom BCM2835 ARM1176JZF-S	GPIO, I2C, SPI, UART					10 Mbps	100 Mbps
Seeed Technology Co., Ltd 102991306	USB OTG Type C (1), USB Type A (1)	80 C	-20 C	800 MHz						1		eMMC, microSD, NAND - Flash	8 GB, 512 MB	NXP i.MX6ULL ARM Cortex A7	I2C, LCD, SD							SD Card
Seeed Technology Co., Ltd 102991559	USB 2.0 (2)	60 °C	-20 C	1.5 GHz	HDMI	123.95 mm	2.99 in	4.88 "	75.94 mm	4	RJ45	eMMC, M.2	0 GB, 4 GB	Raspberry Pi CM4 ARM Cortex-A72	GPIO, I2C, I2S, mPCIe, PWM, SDIO, SPI, UART	10, 100, 1000						Power Supply	2
Seeed Technology Co., Ltd 102991558	USB 2.0 (2)	60 °C	-20 C	1.5 GHz	HDMI	123.95 mm	2.99 in	4.88 "	75.94 mm	4	RJ45	eMMC, M.2	0 GB, 1 GB	Raspberry Pi CM4 ARM Cortex-A72	GPIO, I2C, I2S, mPCIe, PWM, SDIO, SPI, UART	10, 100, 1000							2
Seeed Technology Co., Ltd 102990170	USB 2.0 (2), USB OTG (1)			1.8 GHz	eDP, HDMI, LVDS, MIPI-CSI, VGA	118 mm	3.346 in	4.646 in	84.98 mm	4	RJ45	eMMC, microSD	2 GB, 16 GB	Rockchip RK3288, ARM Cortex A17	GPIO, I2C, I2S, SPI, UART	10 Mbps, 100 Mbps, 1000 Mbps						SD Card
Seeed Technology Co., Ltd 102990089					CVBS, HDMI, LVDS, RGB, VGA					2		microSD	4 GB, 32 GB	ARM Cortex-A7	CVBS, HDMI, I2C, I2S, RGB, UART, VGA	10 Mbps, 100 Mbps						microSD Card		Pico-ITX	32 GB
Seeed Technology Co., Ltd 102990157	USB 2.0 (2), USB 2.0 Mini (1)			1 GHz	HDMI	100.07 mm	2.36 "	3.94 in	59.94 mm	2	(1)			ARM Cortex-A7		10 Mbps, 100 Mbps	96									1GB/1GB
