102990170

Obsolete

Seeed Technology Co., Ltd

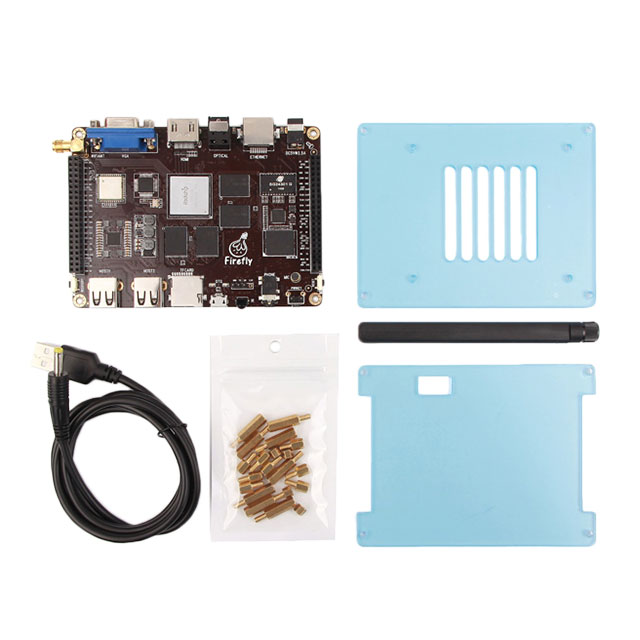

SBC 1.8GHZ 4 CORE 2GB/16GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

102990170

Obsolete

Seeed Technology Co., Ltd

SBC 1.8GHZ 4 CORE 2GB/16GB RAM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10299 Series

Single Board Computer 1.8GHz 4 Core 2GB/2GB RAM Rockchip RK3288, ARM Cortex A17

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102990170	10299 Series

Contents	SD Card	SD Card, Power Supply, microSD Card
Contents	-	32 GB
Core Processor	Rockchip RK3288, ARM Cortex A17	Broadcom BCM2711 Arm Cortex-A72, Raspberry Pi CM4 ARM Cortex-A72, ARM Cortex-A7, Broadcom BCM2835 ARM1176JZF-S, NXP i.MX6ULL ARM Cortex A7, Rockchip RK3288, ARM Cortex A17
Digital I/O Lines	-	54 - 96
Ethernet	100 Mbps, 10 Mbps, 1000 Mbps	2 - 1000
Ethernet	RJ45	GbE, RJ45, (1)
Ethernet	-	10 Mbps
Ethernet	-	100 Mbps
Expansion Site/Bus	I2C, GPIO, UART, I2S, SPI	GPIO, PCIe, mPCIe, I2C, UART, SPI, LCD, SD, I2S, PWM, SDIO, CVBS, HDMI, RGB, VGA
Form Factor	-	Pico-ITX
Number of Cores	4	1 - 4
Operating Temperature	-	60 - 80 C
Operating Temperature	-	-20 - 0 °C
Operating Temperature	-	-10 °C
Operating Temperature	-	158 °F
RAM Capacity/Installed	2 GB, 16 GB	0 - 512 GB
RAM Capacity/Installed	-	1GB/1GB
RS-232 (422, 485)	-	2
Size / Dimension [x]	118 mm	55 - 123.95 mm
Size / Dimension [x]	4.646 in	2.17 - 4.88 "
Size / Dimension [y]	3.346 in	1.57 - 3.86 "
Size / Dimension [y]	84.98 mm	40 - 98.04 mm
Speed	1.8 GHz	1 - 800 GHz
Storage Interface	eMMC, microSD	SD, eMMC, M.2, SDIO, eMMC/SD, NAND - Flash, microSD
USB	USB OTG (1), USB 2.0 (2)	USB 2.0 (1), USB 2.0 (2), USB 2.0 Mini (1), USB OTG Type C (1), USB Type A (1), USB OTG (1)
Video Outputs	MIPI-CSI, LVDS, HDMI, eDP, VGA	DSI, CSI, HDMI, VGA, MIPI-CSI, LVDS, eDP, CVBS, RGB
Watchdog Timer	-	False, True

10299 Series

SBC 1.5GHZ 4 CORE 1GB/0GB RAM

Part	USB	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Video Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Cores	Ethernet	Storage Interface	RAM Capacity/Installed	Core Processor	Expansion Site/Bus	Ethernet	Digital I/O Lines	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Ethernet [Min]	Ethernet [Max]	Contents	RS-232 (422, 485)	Form Factor	Contents	RAM Capacity/Installed
Seeed Technology Co., Ltd 102991380	USB 2.0 (1)	80 C	0 °C	1.5 GHz	CSI, DSI, HDMI	55 mm	1.57 "	2.17 "	40 mm	4	GbE	eMMC, SD	0 GB, 1 GB	Broadcom BCM2711 Arm Cortex-A72	GPIO, PCIe
Seeed Technology Co., Ltd 102991561	USB 2.0 (2)	60 °C	0 °C	1.5 GHz	HDMI	98.04 mm	3.86 in	3.86 in	98.04 mm	4	RJ45	eMMC, M.2	0 GB, 4 GB	Raspberry Pi CM4 ARM Cortex-A72	mPCIe	2, 10, 100, 1000
Seeed Technology Co., Ltd 102990033	USB 2.0 (2), USB 2.0 Mini (1)			1 GHz	HDMI, VGA	109.98 mm	3.15 in	4.33 in	80.01 mm	2			2 GB	ARM Cortex-A7		10 Mbps, 100 Mbps, 1000 Mbps	54	-10 °C	158 °F
Seeed Technology Co., Ltd 102990039	USB 2.0 (2)			700 MHz	DSI, HDMI					1	RJ45	eMMC/SD, SDIO	0 GB, 512 MB	Broadcom BCM2835 ARM1176JZF-S	GPIO, I2C, SPI, UART					10 Mbps	100 Mbps
Seeed Technology Co., Ltd 102991306	USB OTG Type C (1), USB Type A (1)	80 C	-20 C	800 MHz						1		eMMC, microSD, NAND - Flash	8 GB, 512 MB	NXP i.MX6ULL ARM Cortex A7	I2C, LCD, SD							SD Card
Seeed Technology Co., Ltd 102991559	USB 2.0 (2)	60 °C	-20 C	1.5 GHz	HDMI	123.95 mm	2.99 in	4.88 "	75.94 mm	4	RJ45	eMMC, M.2	0 GB, 4 GB	Raspberry Pi CM4 ARM Cortex-A72	GPIO, I2C, I2S, mPCIe, PWM, SDIO, SPI, UART	10, 100, 1000						Power Supply	2
Seeed Technology Co., Ltd 102991558	USB 2.0 (2)	60 °C	-20 C	1.5 GHz	HDMI	123.95 mm	2.99 in	4.88 "	75.94 mm	4	RJ45	eMMC, M.2	0 GB, 1 GB	Raspberry Pi CM4 ARM Cortex-A72	GPIO, I2C, I2S, mPCIe, PWM, SDIO, SPI, UART	10, 100, 1000							2
Seeed Technology Co., Ltd 102990170	USB 2.0 (2), USB OTG (1)			1.8 GHz	eDP, HDMI, LVDS, MIPI-CSI, VGA	118 mm	3.346 in	4.646 in	84.98 mm	4	RJ45	eMMC, microSD	2 GB, 16 GB	Rockchip RK3288, ARM Cortex A17	GPIO, I2C, I2S, SPI, UART	10 Mbps, 100 Mbps, 1000 Mbps						SD Card
Seeed Technology Co., Ltd 102990089					CVBS, HDMI, LVDS, RGB, VGA					2		microSD	4 GB, 32 GB	ARM Cortex-A7	CVBS, HDMI, I2C, I2S, RGB, UART, VGA	10 Mbps, 100 Mbps						microSD Card		Pico-ITX	32 GB
Seeed Technology Co., Ltd 102990157	USB 2.0 (2), USB 2.0 Mini (1)			1 GHz	HDMI	100.07 mm	2.36 "	3.94 in	59.94 mm	2	(1)			ARM Cortex-A7		10 Mbps, 100 Mbps	96									1GB/1GB
