BQ27531YZFT-G1
ActiveBATTERY MANAGEMENT UNIT IMPEDANCE TRACK™ FUEL (GAS) GAUGE FOR BQ2419X CHARGER CONTROLLER
Deep-Dive with AI
Search across all available documentation for this part.

BQ27531YZFT-G1
ActiveBATTERY MANAGEMENT UNIT IMPEDANCE TRACK™ FUEL (GAS) GAUGE FOR BQ2419X CHARGER CONTROLLER
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | BQ27531YZFT-G1 | BQ27531 Series |
---|---|---|
Battery Chemistry | Lithium Ion | Lithium Ion |
Contents | - | Board(s) |
Function | Battery Monitor | Fuel Gauge, Battery Monitor |
Interface | I2C | I2C |
Mounting Type | Surface Mount | Surface Mount |
Number of Cells | 1 | 1 |
Operating Temperature [Max] | 85 °C | 85 °C |
Operating Temperature [Min] | -40 °C | -40 °C |
Package / Case | 15-UFBGA, DSBGA | 15-UFBGA, DSBGA |
Secondary Attributes | - | On-Board LEDs |
Supplied Contents | - | Board(s) |
Supplier Device Package | 15-DSBGA | 15-DSBGA |
Type | - | Power Management |
Utilized IC / Part | - | BQ27531 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Cut Tape (CT) | 1 | $ 3.43 | |
10 | $ 3.08 | |||
25 | $ 2.92 | |||
100 | $ 2.53 | |||
Digi-Reel® | 1 | $ 3.43 | ||
10 | $ 3.08 | |||
25 | $ 2.92 | |||
100 | $ 2.53 | |||
Tape & Reel (TR) | 250 | $ 1.69 | ||
500 | $ 1.60 | |||
Texas Instruments | SMALL T&R | 1 | $ 2.59 | |
100 | $ 2.27 | |||
250 | $ 1.59 | |||
1000 | $ 1.28 |
BQ27531 Series
EVAL MODULE FOR BQ27531
Part | Utilized IC / Part | Type | Contents | Function | Supplied Contents | Secondary Attributes | Supplier Device Package | Battery Chemistry | Mounting Type | Package / Case | Number of Cells | Interface | Operating Temperature [Max] | Operating Temperature [Min] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ27531EVM | BQ27531 | Power Management | Board(s) | Fuel Gauge | Board(s) | On-Board LEDs | ||||||||
Texas Instruments BQ27531YZFT-G1 | Battery Monitor | 15-DSBGA | Lithium Ion | Surface Mount | 15-UFBGA, DSBGA | 1 | I2C | 85 °C | -40 °C |
Description
General part information
BQ27531 Series
The Texas Instruments bq27531-G1 system-side Li- Ion Battery Management Unit is a microcontroller peripheral that provides Impedance Track fuel gauging and charging control for single-cell Li-Ion battery packs. The device requires little system microcontroller firmware development. Together with the bq2419x Single-Cell Switched-Mode Charger, the bq27531-G1 manages an embedded battery (nonremovable) or a removable battery pack.
The bq27531-G1 uses the patented Impedance Track algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-ofcharge (%), run time to empty (minimum), battery voltage (mV), temperature (°C), and state of health (%).

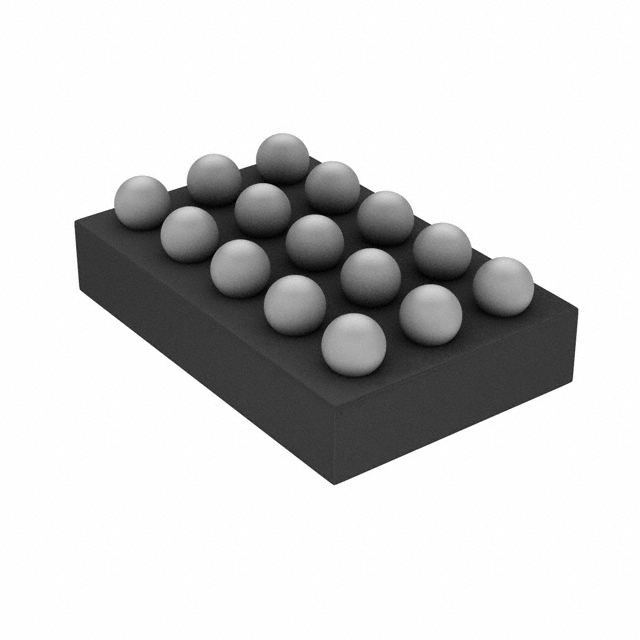

Battery fuel gauging with the bq27531-G1 requires only PACK+ (P+), PACK– (P–), and Thermistor (T) connections to a removable battery pack or embedded battery circuit. The CSP option is a 15-pin package in the dimensions of 2.61 mm × 1.96 mm with a 0.5-mm lead pitch, which is ideal for spaceconstrained applications.
