6791415344F

Active

DIALIGHT

9MM HB/B PMI-24VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

9MM HB/B PMI-24VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6791415344F	6791415 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Blue	Blue
Lens Size [diameter]	6 mm	6 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	215 mcd	215 - 5400 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	30 °
Voltage	24 V	6 - 24 V

LED PANEL INDCATOR BLUE 6V

Part	Ratings	Current	Type	Lens Size [diameter]	Millicandela Rating	Ingress Protection	Lens Style	Viewing Angle	Lamp Color	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Shape	Voltage	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]
DIALIGHT 6791415324F	DC	30 mA	LED	6 mm	5400 mcd	IP66, NEMA 4X	Round with Domed Top	30 °	Blue	0.37 in	9.35 mm	Round	6 V
DIALIGHT 6791415344F	DC	30 mA	LED	6 mm	215 mcd	IP66, NEMA 4X	Round with Domed Top		Blue			Round	24 V	0.37 in	9.4 mm
DIALIGHT 6791415334F	DC	30 mA	LED	6 mm	5400 mcd	IP66, NEMA 4X	Round with Domed Top	30 °	Blue	0.37 in	9.35 mm	Round	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

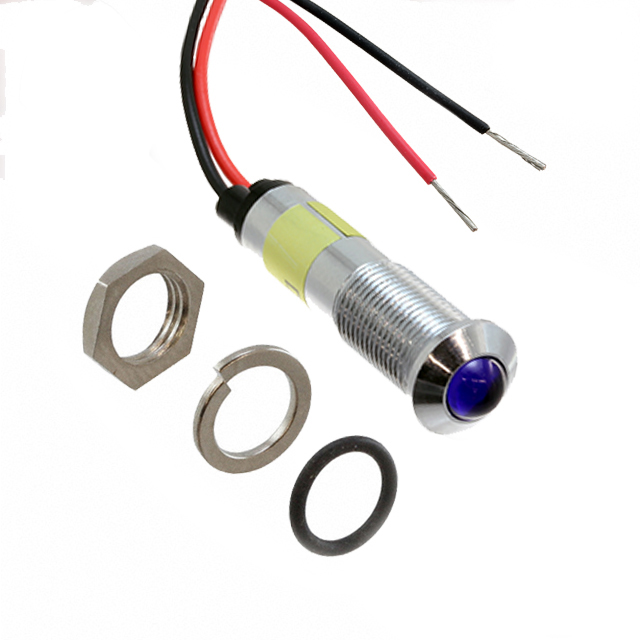

LED Panel Indicator Blue 24V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
