929984-01-05-RK

Active

3M (TC)

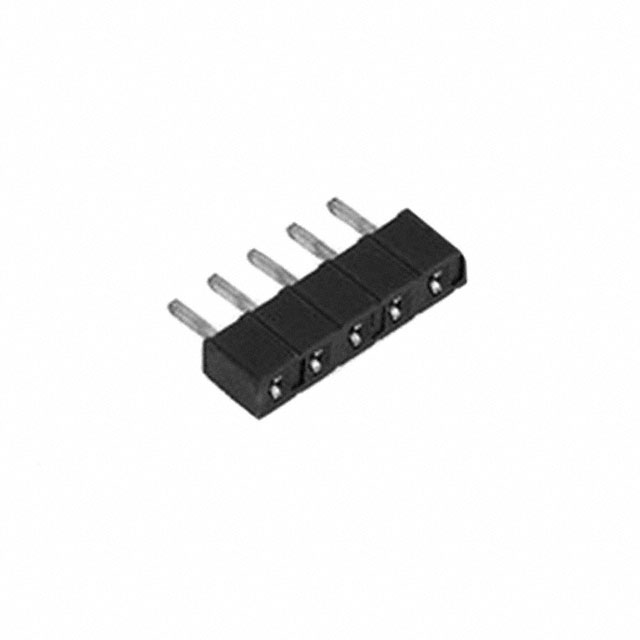

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 5 CONTACTS, THROUGH HOLE MOUNT, 929 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

929984-01-05-RK

Active

3M (TC)

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 5 CONTACTS, THROUGH HOLE MOUNT, 929 SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929984-01-05-RK

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.81 mm
Insulation Height	0.15 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	1000 VDC

929984 Series

Part	Contact Type	Insulation Material	Termination	Mounting Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Rows	Insulation Color	Material Flammability Rating	Contact Material	Voltage Rating	Number of Positions Loaded	Contact Shape	Connector Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Mating
3M (TC) 929984-01-05-RK	Forked	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	Tin	1	Black	UL94 V-0	Copper Alloy	1000 VDC	All	Square	Receptacle	Push-Pull	3.18 mm	0.125 in	3.81 mm	0.15 in
3M (TC) 929984-01-07-RK	Forked	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	Tin	1	Black	UL94 V-0	Copper Alloy	1000 VDC	All	Square	Receptacle	Push-Pull	3.18 mm	0.125 in	3.81 mm	0.15 in	7
3M (TC) 929984-01-24	Forked	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	Tin-Lead	1	Black	UL94 V-0	Copper Alloy	1000 VDC	All	Square	Receptacle	Push-Pull	3.18 mm	0.125 in	3.81 mm	0.15 in	24	Tin-Lead
3M (TC) 929984-01-11-RK	Forked	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	Tin	1	Black	UL94 V-0	Copper Alloy	1000 VDC	All	Square	Receptacle	Push-Pull	3.18 mm	0.125 in	3.81 mm	0.15 in	11
3M (TC) 929984-01-13-RK	Forked	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	Tin	1	Black	UL94 V-0	Copper Alloy	1000 VDC	All	Square	Receptacle	Push-Pull	3.18 mm	0.125 in	3.81 mm	0.15 in	13
3M (TC) 929984-01-20-RK	Forked	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	Tin	1	Black	UL94 V-0	Copper Alloy	1000 VDC	All	Square	Receptacle	Push-Pull	3.18 mm	0.125 in	3.81 mm	0.15 in	20
3M (TC) 929984-01-07	Forked	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	Tin-Lead	1	Black	UL94 V-0	Copper Alloy	1000 VDC	All	Square	Receptacle	Push-Pull	3.18 mm	0.125 in	3.81 mm	0.15 in	7	Tin-Lead
3M (TC) 929984-01-01	Forked	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Through Hole			-40 °C	105 ░C	Tin-Lead	1	Black	UL94 V-0	Copper Alloy	1000 VDC	All	Square	Receptacle	Push-Pull	3.18 mm	0.125 in	3.81 mm	0.15 in	1	Tin-Lead
3M (TC) 929984-01-06	Forked	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	Tin-Lead	1	Black	UL94 V-0	Copper Alloy	1000 VDC	All	Square	Receptacle	Push-Pull	3.18 mm	0.125 in	3.81 mm	0.15 in	6	Tin-Lead
3M (TC) 929984-01-36-RK	Forked	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Through Hole	0.1 in	2.54 mm	-40 °C	105 ░C	Tin	1	Black	UL94 V-0	Copper Alloy	1000 VDC	All	Square	Receptacle	Push-Pull	3.18 mm	0.125 in	3.81 mm	0.15 in	36

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.03
		10	$ 1.77
		100	$ 1.58
		500	$ 1.32
		1000	$ 1.13
		5000	$ 1.00
		10000	$ 0.98

Description

General part information

929984 Series

5 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
