BMP280-SHUTL

Obsolete

Bosch Sensortec

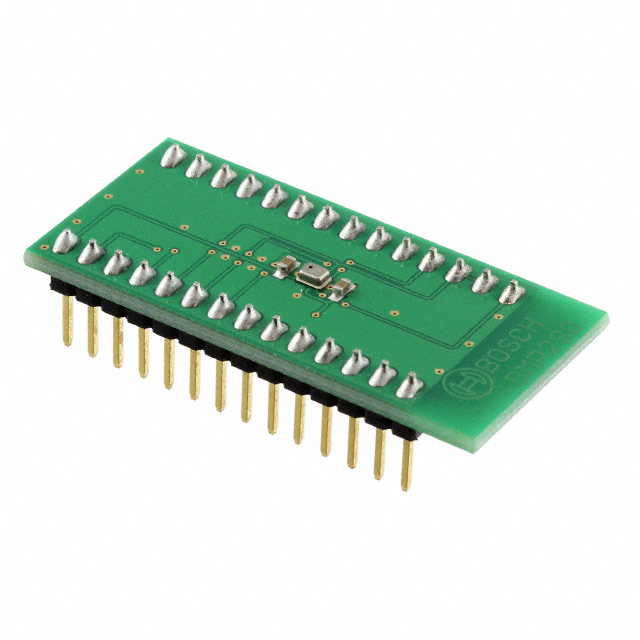

SHUTTLE BOARD BMP280

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMP280

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Function	Contents	Type	Termination Style	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Type	Features	Accuracy	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Package / Case	Port Style
Bosch Sensortec BMP280-SHUTL	BMP280	Pressure	Board(s)	Sensor
Bosch Sensortec BMP280					SMD (SMT) Tab	Board Mount	85 °C	-40 °C	8-SMD	I2C SPI	Standby Mode	0.1 kPa	0.015 PSI	290.08 PSI	2000 kPa	16 b	3.6 V	1.71 V	Surface Mount	15.95 PSI	4.35 PSI	110 kPa	30 kPa	8-SMD	No Port

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMP280 Pressure Sensor Platform Evaluation Expansion Board

Technical documentation and resources
