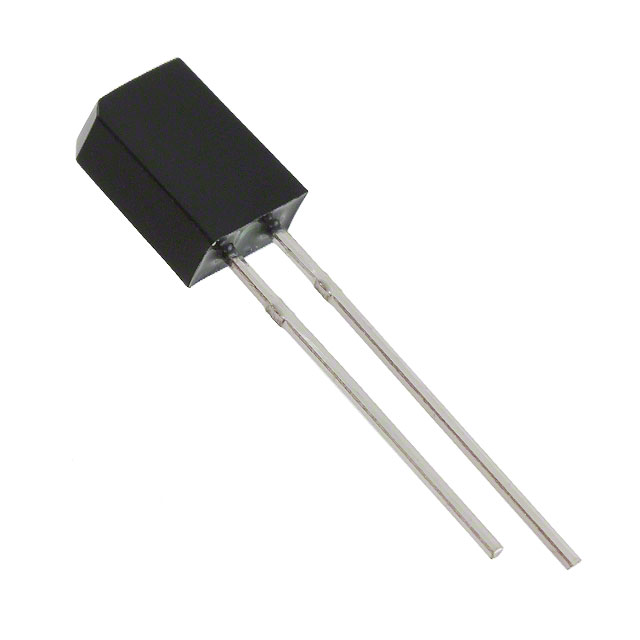

PD638B
ActiveEverlight Electronics Co Ltd
SENSOR PHOTODIODE 940NM RADIAL
PD638B
ActiveEverlight Electronics Co Ltd
SENSOR PHOTODIODE 940NM RADIAL
Description
General part information
PD638 Series
Photodiode 940nm 50ns Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | PD638B |
|---|---|
| Current - Dark (Typ) | 5 nA |
| Diode Type | Pin |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Response Time | 50 ns |
| Spectral Range (Maximum) | 1100 nm |
| Spectral Range (Minimum) | 840 nm |
| Voltage - DC Reverse (Vr) (Max) | 170 V |
| Wavelength | 940 nm |
