EVP.0V.304.CLL

Active

LEMO

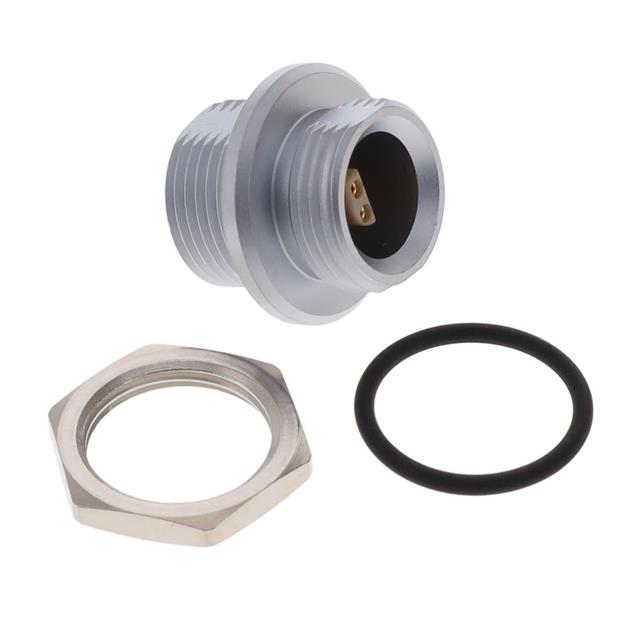

CONN CIRC RCPT 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN CIRC RCPT 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	EVP.0V.304.CLL

Color	Silver
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	7 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

CONN CIRC RCPT 4P GOLD SLDR CUP

Part	Shell Finish	Orientation	Primary Material	Contact Material	Connector Type	Contact Finish - Mating	Current Rating (Amps)	Shell Size - Insert	Number of Positions	Color	Insert Material	Shielding	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Mounting Feature
LEMO EVP.0V.304.CLL	Chrome	Keyed	Metal	Bronze	Female Sockets, Male Pins, Receptacle	Gold	7 A	304	4	Silver	Polyetheretherketone (PEEK)	Shielded	Brass	-20 C	200 °C	59 Áin	1.5 Ám	IP68 - Dust Tight, Waterproof	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
