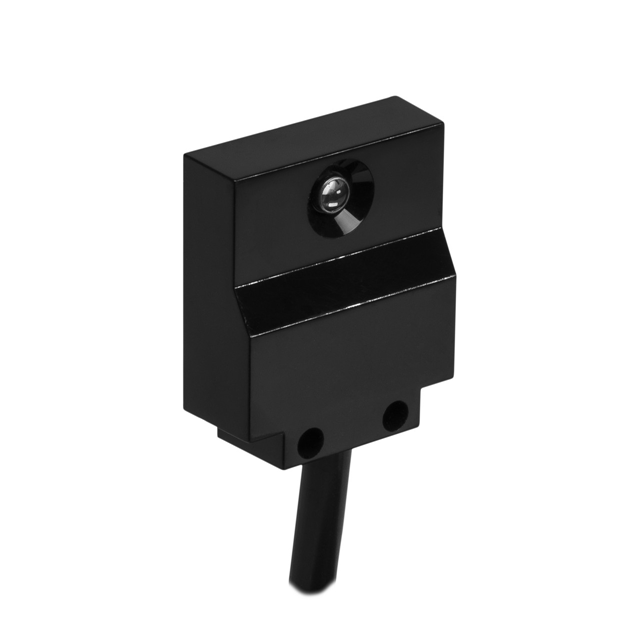

SE61EMHS

Active

BANNER ENGINEERING

ECONO-BEAM: HIGH SPEED EMITTER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

ECONO-BEAM: HIGH SPEED EMITTER

Technical Specifications

Parameters and characteristics for this part

Specification	SE61EMHS

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 12, NEMA 4, NEMA 1, NEMA 4X, IEC IP66, NEMA 13, NEMA 3, NEMA 3S
Response Time	1 ms
Sensing Distance	70.866 "
Sensing Distance	1.8 m
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Connection Method	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Response Time	Cable Length	Cable Length	Ingress Protection
BANNER ENGINEERING SE61EMHS	Cable	Through-Beam	30 VDC	10 VDC	70.866 "	1.8 m	1 ms	78.74 in	2 m	IEC IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 3S NEMA 4 NEMA 4X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 77.00
Newark	Each	1	$ 78.00

General part information

Through-Beam Optical Sensor 70.866" (1.8m)
