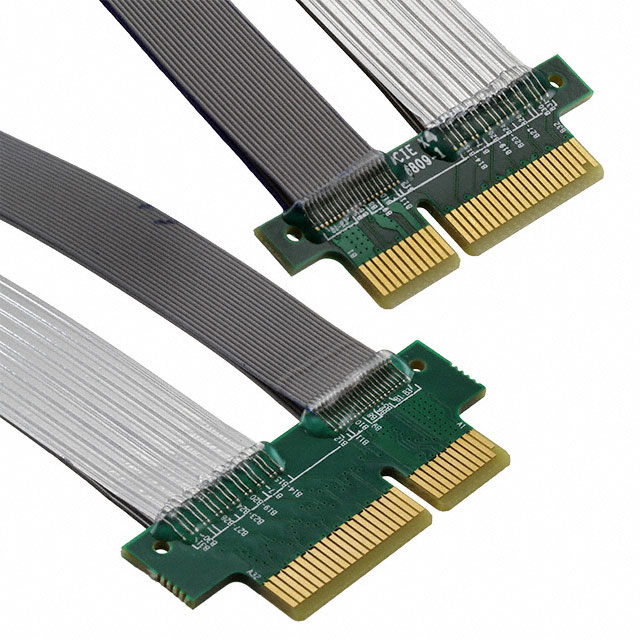

8KJ2-0743-0250
Active3M (TC)
70010032103 8KJ2-0743-0250=ASSY/TWINAX/INT/PCIE/EXTEN/30AWG/250MM
Deep-Dive with AI
Search across all available documentation for this part.
8KJ2-0743-0250
Active3M (TC)
70010032103 8KJ2-0743-0250=ASSY/TWINAX/INT/PCIE/EXTEN/30AWG/250MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8KJ2-0743-0250 |
|---|---|
| Cable Connectors | PCIe x4 |
| Cable Type | Twin Axial, Flat |
| Color | Silver |
| Connector Type | Card Edge to Card Edge |
| Features | Extender |
| Gender | Male to Male |
| Length [x] | 250 mm |
| Length [x] | 9.84 in |
| Length [x] | 9.843 in |
| Number of Positions | 64 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shielding | Shielded |
| Usage | Internal |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
8KJ2 Series
64 Position PCIe x4 Card Edge to Card Edge 0.820' (250.00mm, 9.843") Silver Shielded
