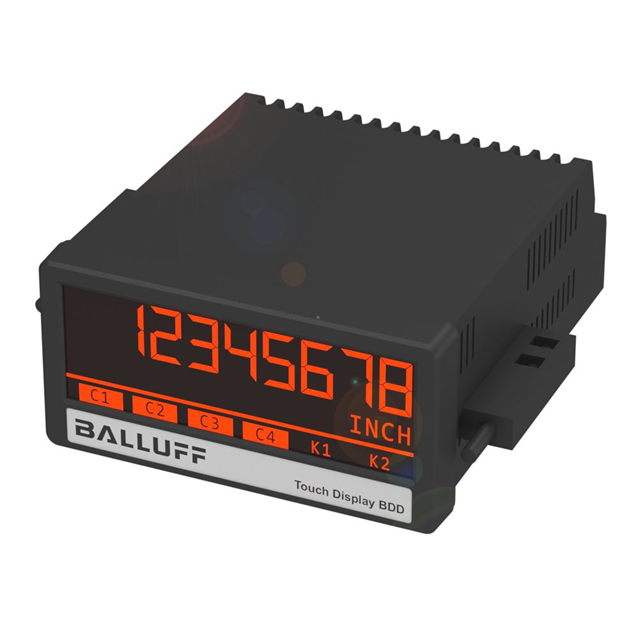

BAE010J

Active

Balluff

FUNCTION=ANALOG VALUE DISPLAY, O

Search across all available documentation for this part.

Active

Balluff

FUNCTION=ANALOG VALUE DISPLAY, O

Technical Specifications

Parameters and characteristics for this part

Specification	BAE010J

Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	10 V, 20 mA
Measuring Range [Min]	-10 V, 0 A
Measuring Type	Process
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Type	Analog
Panel Cutout Dimensions [x]	91 mm
Panel Cutout Dimensions [y]	43 mm
Type	Process Meter

FUNCTION=ANALOG VALUE DISPLAY, O

Part	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Output Type	Measuring Type	Ingress Protection	Type	Measuring Range [Max]	Measuring Range [Min]
Balluff BAE010J	-20 C	60 °C	91 mm	43 mm	Analog	Process	IP65 - Dust Tight, Water Resistant	Process Meter	10 V, 20 mA	-10 V, 0 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 634.52

General part information

Process Meter Display Panel Mount

Technical documentation and resources

No documents available
