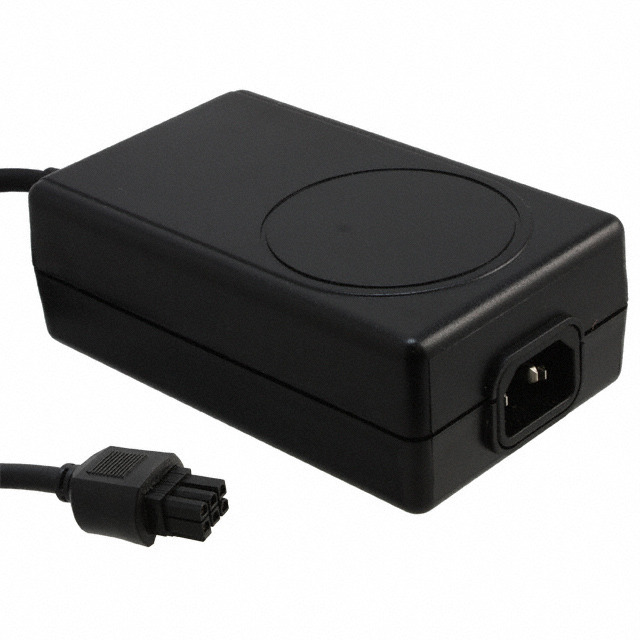

ME90A1251F01

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 12V 90W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 12V 90W

Technical Specifications

Parameters and characteristics for this part

Part	Polarization	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	No Load Power Consumption	Output Connector [diameter]	Output Connector [x]	Output Connector	Current - Output (Max) [Max]	Cord Length	Cord Length	Approval Agency	Region Utilized	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Form	Input Connector	Power (Watts)
SL POWER / Advanced Energy ME90A1251Q01	Positive Center	1.34 in	34 mm	2.58 in	65.5 mm	150 mm	5.91 "	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	7.5 A	1.5 m	59 in	CE	International	Medical	50 °C	-20 C	Level VI	Cord	90 VAC	264 VAC	12 V	Desktop (Class II)	IEC 320-C18	90 W
SL POWER / Advanced Energy ME90A1251N01		1.34 in	34 mm	2.58 in	65.5 mm	150 mm	5.91 "	210 mW			Rectangular 6 Position	7.5 A	1.5 m	59 in	CE	International	Medical	50 °C	-20 C	Level VI	Cord	90 VAC	264 VAC	12 V	Desktop (Class II)	IEC 320-C8	90 W
SL POWER / Advanced Energy ME90A1251F01		1.34 in	34 mm	2.58 in	65.5 mm	150.5 mm	5.9 in	210 mW			Rectangular 6 Position	7.5 A	1.15 m	45.3 in	CE	International	Medical	50 °C	-20 C	Level VI	Cord	100 VAC	240 VAC	12 V	Desktop (Class I)	IEC 320-C14	90 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
