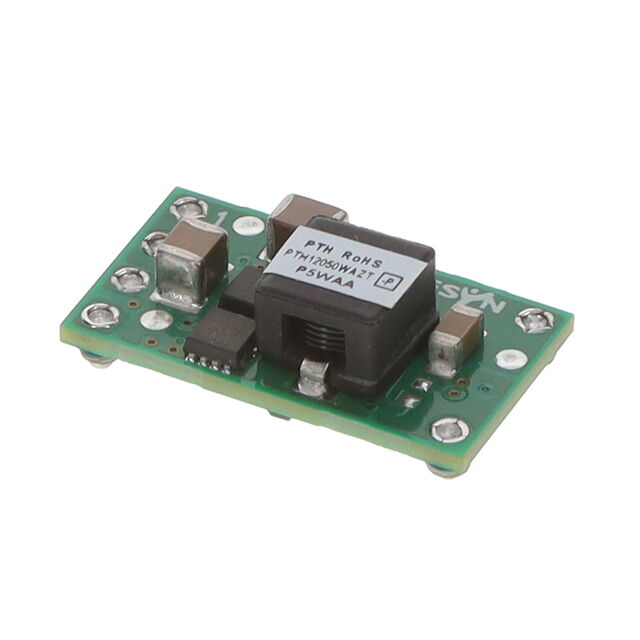

PTH12050WAZT
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 1.2-5.5V 33W
Deep-Dive with AI
Search across all available documentation for this part.
PTH12050WAZT
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 1.2-5.5V 33W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTH12050WAZT |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 93 % |
| Features | UVLO, Remote On/Off, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 33 W |
| Size / Dimension [x] | 22.1 mm |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [y] | 12.7 mm |
| Size / Dimension [y] | 0.5 in |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.34 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 1.2 V |
