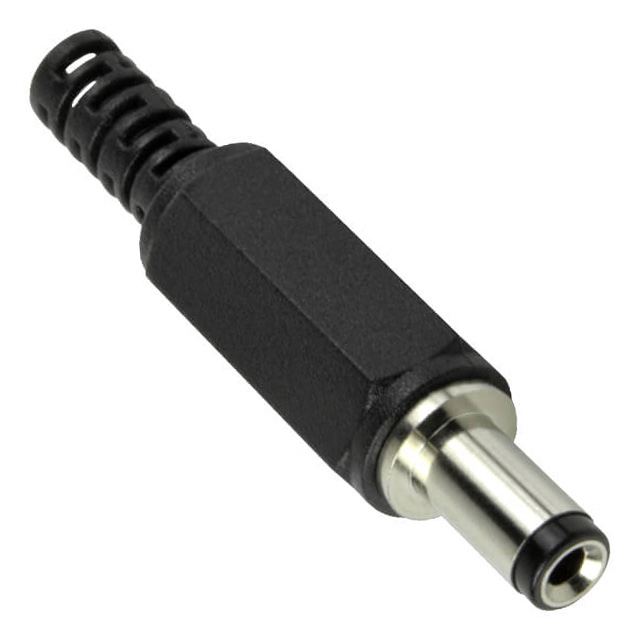

PP-050A

Active

CUI Devices

POWER PLUG, 2.1 X 5.0 X 9.5 MM,

Search across all available documentation for this part.

Active

CUI Devices

POWER PLUG, 2.1 X 5.0 X 9.5 MM,

Technical Specifications

Parameters and characteristics for this part

Specification	PP-050A

Actual Diameter [custom]	2.1 mm, 0.083 in
Actual Diameter [custom]	0.197 in, 5 mm
Body Color	Silver, Black
Body Material	Brass
Connector Type	Plug
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	5 A
Features	Cover, Strain Relief
Gender	Female
Housing Material	Polyvinyl Chloride (PVC)
Includes	1 Connector, 1 Cover
Industry Recognized Mating Diameter	5 mm, 2.1 mm
Industry Recognized Mating Diameter	0.083 in, 0.197 in
Insulation Color	Black
Internal Switch(s)	False
Mating Length/Depth	0.374 in
Mating Length/Depth	9.5 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Voltage - Rated	20 V

Part	Insulation Color	Contact Material	Internal Switch(s)	Connector Type	Current Rating (Amps)	Includes	Body Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Material - Plating [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mating Length/Depth	Mating Length/Depth	Voltage - Rated	Mounting Type	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Features	Shielding	Body Material	Gender	Actual Diameter [custom]	Actual Diameter [custom]	Housing Material	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Actual Diameter [custom]	Actual Diameter [custom]
CUI Devices PP-050A	Black	Brass		Plug	5 A	1 Connector 1 Cover	Black Silver	2	2	Nickel	70 °C	-25 °C	0.374 in	9.5 mm	20 V	Free Hanging (In-Line)	2.1 mm 5 mm	0.083 in 0.197 in	Cover Strain Relief	Unshielded	Brass	Female	0.083 in 2.1 mm	0.197 in 5 mm	Polyvinyl Chloride (PVC)
CUI Devices PP-050B	Black	Brass		Plug	5 A	1 Connector 1 Cover	Black Silver	2	2	Nickel	70 °C	-25 °C	0.374 in	9.5 mm	20 V	Free Hanging (In-Line)			Cover Strain Relief	Unshielded	Brass	Female	2.5 mm	5 mm	Polyvinyl Chloride (PVC)	2.5 mm 5 mm	0.098 " 0.197 in	0.098 in	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Plug 2.10mm ID (0.083"), 5.00mm OD (0.197") Free Hanging (In-Line)
