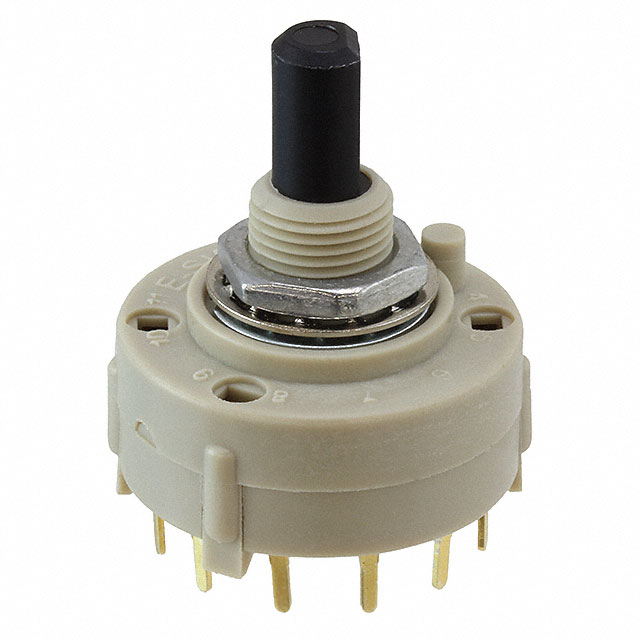

KC52A10.001NPF

Active

E-Switch

SWITCH ROTARY 12POS 350MA 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROTARY 12POS 350MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KC52A10.001NPF

Actuator Length [x]	10 mm
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	SP12T
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	350 mA
Depth Behind Panel	14.2 mm
Index Stops	Fixed
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions	12
Panel Cutout Dimensions [diameter]	9.8 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Angle of Throw	Termination Style	Contact Material	Number of Positions	Actuator Length [x]	Index Stops	Depth Behind Panel	Circuit per Deck	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Number of Poles per Deck	Actuator Type [diameter]	Actuator Type	Contact Timing	Current Rating (Amps)	Number of Decks [custom]	Contact Finish	Mounting Type	Depth Behind Panel [z]
E-Switch KC52A10.001NPF	30 °	PC Pin	Copper Alloy	12	10 mm	Fixed	14.2 mm	SP12T	9.8 mm	125 V	1	6.35 mm	Flatted	Non-Shorting	350 mA	1	Gold	Panel Mount Through Hole
E-Switch KC52A10.001NLS	30 °	Solder Lug	Copper Alloy	12	10 mm	Fixed		SP12T	9.8 mm	125 V	1	6.35 mm	Flatted	Non-Shorting	350 mA	1	Silver		18.5 mm
