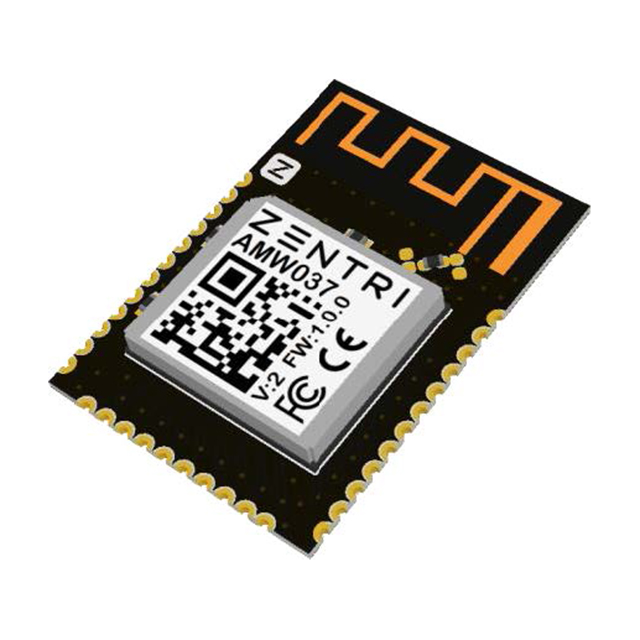

AMW037-1.0.2R

Unknown

Silicon Labs

MODULE 802.11B/G/N 2.484GHZ 54000KBPS 44-PIN T/R

Search across all available documentation for this part.

Unknown

Silicon Labs

MODULE 802.11B/G/N 2.484GHZ 54000KBPS 44-PIN T/R

Technical Specifications

Parameters and characteristics for this part

MODULE 802.11B/G/N 2.484GHZ 54000KBPS 44-PIN T/R

Part	RF Family/Standard	Frequency	Protocol	Serial Interfaces	Memory Size	Package / Case	Current - Transmitting	Data Rate	Power - Output	Sensitivity	Current - Receiving	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Voltage - Supply	Mounting Type
Silicon Labs AMW037-1.0.2R	WiFi	2.4 GHz	802.11b/g/n	SPI, UART	2 MB	Module	200 mA	54 Mbps	20 dBm	-93 dBm	65 mA	85 °C	-40 °C	Integrated, Trace	3.3 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Surface Mount

Technical documentation and resources

No documents available
