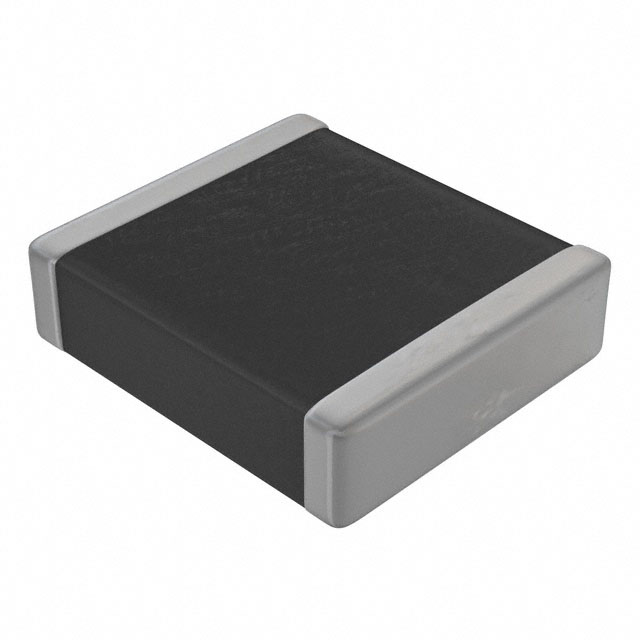

C2220X333J5GACAUTO

Active

KEMET

CAP CER 0.033UF 50V C0G/NP0 2220

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC2220X333J5GACAUTO Spec Datasheet

C2220X333J5GACAUTO

Active

KEMET

CAP CER 0.033UF 50V C0G/NP0 2220

Deep-Dive with AI

DocumentsC2220X333J5GACAUTO Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C2220X333J5GACAUTO

Applications	Boardflex Sensitive, Automotive
Capacitance	0.033 çF
Features	Low ESL, Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	5750 Metric
Package / Case	2220
Ratings	AEC-Q200
Size / Dimension [x]	0.232 in
Size / Dimension [x]	5.9 mm
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Temperature Coefficient	NP0, C0G
Thickness (Max) [Max]	0.045 in
Thickness (Max) [Max]	1.15 mm
Tolerance	5 %
Voltage - Rated	50 VDC

C2220X Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Temperature Coefficient	Package / Case	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Voltage - Rated	Applications	Tolerance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max)	Voltage - Rated	Ratings
KEMET C2220X105K1RAC7800	0.197 "	0.232 in	5 mm	5.9 mm	MLCC Surface Mount	X7R	5750 Metric	2220	0.065 in	1.65 mm	1 µF	100 V	Boardflex Sensitive	10 %	Soft Termination	-55 °C	125 °C
KEMET C2220X473KFRAC7800	0.197 "	0.232 in	5 mm	5.9 mm	MLCC Surface Mount	X7R	5750 Metric	2220	0.071 "			1500 V	Boardflex Sensitive	10 %	High Voltage Low ESL Soft Termination	-55 °C	125 °C	1.8 mm	1.5 kV
KEMET C2220X224KBRACAUTO	0.197 "	0.232 in	5 mm	5.9 mm	MLCC Surface Mount	X7R	5750 Metric	2220	0.071 "		0.22 µF	630 V	Automotive Boardflex Sensitive	10 %	High Voltage Soft Termination	-55 °C	125 °C	1.8 mm		AEC-Q200
KEMET C2220X226M3RAC7800	0.197 "	0.232 in	5 mm	5.9 mm	MLCC Surface Mount	X7R	5750 Metric	2220	0.1 in	2.55 mm	22 µF	25 VDC	Boardflex Sensitive	20 %	Soft Termination	-55 °C	125 °C
KEMET C2220X224KCRAC7800	0.197 "	0.232 in	5 mm	5.9 mm	MLCC Surface Mount	X7R	5750 Metric	2220	0.071 "		0.22 µF	500 V	Boardflex Sensitive	10 %	High Voltage Low ESL Soft Termination	-55 °C	125 °C	1.8 mm
KEMET C2220X474K5RAC7800	0.197 "	0.232 in	5 mm	5.9 mm	MLCC Surface Mount	X7R	5750 Metric	2220	0.049 "	1.25 mm	0.47 µF	50 VDC	Boardflex Sensitive	10 %	Soft Termination	-55 °C	125 °C
KEMET C2220X104KDRACAUTO	0.197 "	0.232 in	5 mm	5.9 mm	MLCC Surface Mount	X7R	5750 Metric	2220	0.106 "	2.7 mm	100000 pF	1000 V	Automotive Boardflex Sensitive	10 %	High Voltage Soft Termination	-55 °C	125 °C		1 kV	AEC-Q200
KEMET C2220X563KFRAC7800	0.197 "	0.232 in	5 mm	5.9 mm	MLCC Surface Mount	X7R	5750 Metric	2220	0.106 "	2.7 mm	0.056 µF	1500 V	Boardflex Sensitive	10 %	High Voltage Low ESL Soft Termination	-55 °C	125 °C		1.5 kV
KEMET C2220X152KDGACAUTO	0.197 "	0.232 in	5 mm	5.9 mm	MLCC Surface Mount	C0G NP0	5750 Metric	2220	0.071 "		1500 pF	1000 V	Automotive Boardflex Sensitive	10 %	High Voltage Low ESL Soft Termination	-55 °C	125 °C	1.8 mm	1 kV	AEC-Q200
KEMET C2220X333J5GACAUTO	0.197 "	0.232 in	5 mm	5.9 mm	MLCC Surface Mount	C0G NP0	5750 Metric	2220	0.045 in	1.15 mm	0.033 çF	50 VDC	Automotive Boardflex Sensitive	5 %	Low ESL Soft Termination	-55 °C	125 °C			AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.71
	Tape & Reel (TR)	1000	$ 0.68
Newark	Each (Supplied on Full Reel)	1000	$ 0.77
		2000	$ 0.70
		4000	$ 0.63
		6000	$ 0.61
		10000	$ 0.59

Description

General part information

C2220X Series

0.033 µF ±5% 50V Ceramic Capacitor C0G, NP0 2220 (5750 Metric)

Documents

Technical documentation and resources

C2220X333J5GACAUTO Spec

Datasheet
