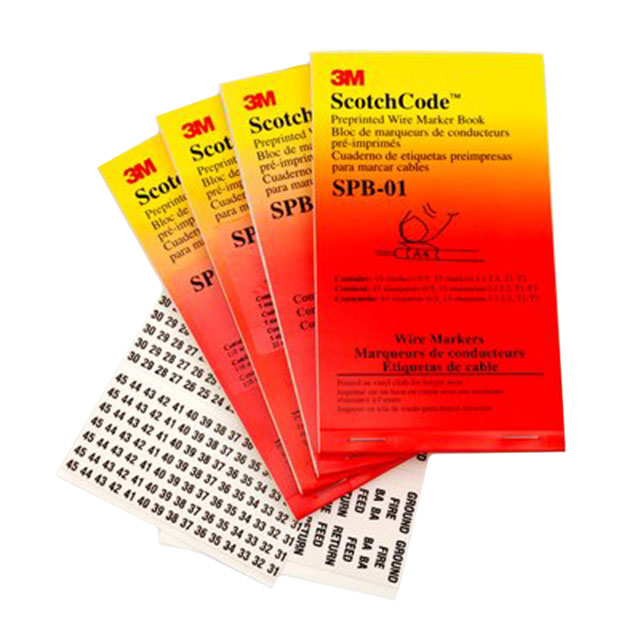

3M SCOTCHCODE PRE-PRINTED WIRE MARKER BOOK SPB-06

Search across all available documentation for this part.

Active

3M SCOTCHCODE PRE-PRINTED WIRE MARKER BOOK SPB-06

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPB-06	SPB Series

Cable Diameter [diameter]	11.94 mm	11.94 mm
Cable Diameter [diameter]	0.47 in	0.47 in
Color	White	White
Legend	T2, T3, T1	B, 1, 3, 2, T1, C, T3, L3, L1, A, L2, T2, SPARE, GND, POS, +, NEG, AC, Blank, -, NEUT, DC, 7, 9, 0, 5, 6, 8, 4, L1,L2,L3, 1-15, 16-45
Legend	-	1
Legend	-	30
Material	Vinyl Cloth	Vinyl Cloth
Operating Temperature [Max]	66 °C	66 °C
Operating Temperature [Min]	0 °C	0 °C
Size [x]	5.6 mm	5.6 mm
Size [x]	0.22 in	0.22 in
Size [y]	34.8 mm	34.8 mm
Size [y]	1.37 in	1.37 in
Type	Wire Marker, Book (Perforated)	Wire Marker, Book (Perforated)

WIRE MARKR BOOK 5.6MMX34.8MM WHT

Part	Type	Color	Operating Temperature [Max]	Material	Legend	Size [x]	Size [x]	Size [y]	Size [y]	Cable Diameter [diameter]	Cable Diameter [diameter]	Legend [Min]	Legend [Max]
3M SPB-09	Book (Perforated), Wire Marker	White	66 °C	Vinyl Cloth	1, 2, 3, A, B, C, L1, L2, L3, T1, T2, T3	5.6 mm	0.22 in	34.8 mm	1.37 in	11.94 mm	0.47 in
3M SPB-13	Book (Perforated), Wire Marker	White	66 °C	Vinyl Cloth	-, +, AC, Blank, DC, GND, NEG, NEUT, POS, SPARE	5.6 mm	0.22 in	34.8 mm	1.37 in	11.94 mm	0.47 in
3M SPB-04	Book (Perforated), Wire Marker	White	66 °C	Vinyl Cloth	1, 2, 3	5.6 mm	0.22 in	34.8 mm	1.37 in	11.94 mm	0.47 in
3M SPB-01	Book (Perforated), Wire Marker	White	66 °C	Vinyl Cloth	0, 1, 2, 3, 4, 5, 6, 7, 8, 9, L1, L2, L3, T1, T2, T3	5.6 mm	0.22 in	34.8 mm	1.37 in	11.94 mm	0.47 in
3M SPB-07	Book (Perforated), Wire Marker	White	66 °C	Vinyl Cloth	L1,L2,L3	5.6 mm	0.22 in	34.8 mm	1.37 in	11.94 mm	0.47 in
3M SPB-15-AS1	Book (Perforated), Wire Marker	White	66 °C	Vinyl Cloth	1-15, 16-45, Blank	5.6 mm	0.22 in	34.8 mm	1.37 in	11.94 mm	0.47 in
3M SPB-11	Book (Perforated), Wire Marker	White	66 °C	Vinyl Cloth		5.6 mm	0.22 in	34.8 mm	1.37 in	11.94 mm	0.47 in	1	30
3M SPB-06	Book (Perforated), Wire Marker	White	66 °C	Vinyl Cloth	T1, T2, T3	5.6 mm	0.22 in	34.8 mm	1.37 in	11.94 mm	0.47 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Marker, Book (Perforated) 0.22" W x 1.37" L (5.6mm x 34.8mm) White Vinyl Cloth
