2700114
ActivePhoenix Contact

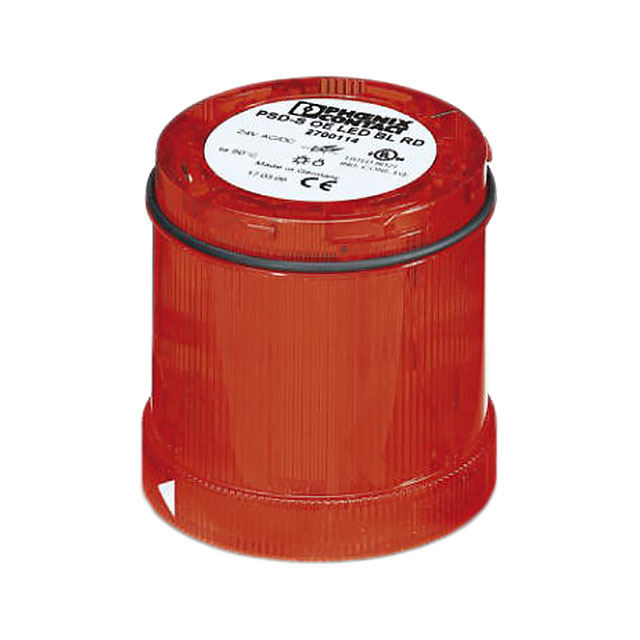

LED LIGHTING LENSES PSD-S OE LED BL RD
Deep-Dive with AI
Search across all available documentation for this part.
2700114
ActivePhoenix Contact
LED LIGHTING LENSES PSD-S OE LED BL RD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2700114 | 27001 Series |
|---|---|---|
| Features | - | Adjustable Volume, Magnetic Base, Automatic Volume Control, Integrated Tube |
| Function - Audible | - | Voice Output, Alternating, Continuous, Pulse, Multiple |
| Function - Lighting | Flashing | Double Flashing, Flashing, Steady, Rotating |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant, IP40 |
| Lamp Type | - | Incandescent, Xenon, Not Included |
| Light Color | Red | Yellow, Clear, Red, Green |
| Number of Stacks | 1 | 1 |
| Operating Temperature [Max] | 50 °C | 50 - 60 °C |
| Operating Temperature [Min] | -20 C | -30 - -20 C |
| Type | Optical Element | Optical Element, Tube, Replacement End Cover, Mounting Base, Mounting Bracket, Acoustic Element, Outlet Box, Bulb, Mounting Adapter |
| Voltage - Supply | 24 VAC | 24 VDC |
| Voltage - Supply | - | 240 VAC |
| Voltage - Supply | - | 12 VAC |
| Weight | 58.97 g | 1.36 - 328.85 g |
| Weight | 0.13 lbs | 0.003 - 0.725 lb |
27001 Series
OPTICAL ELEMENT YLW DBL FLASH
| Part | Weight | Weight | Function - Lighting | Type | Number of Stacks | Light Color | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply | Ingress Protection | Features | Function - Audible | Lamp Type | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2700124 | 72.12 g | 0.159 lb | Double Flashing | Optical Element | 1 | Yellow | 50 °C | -20 C | 24 VDC | IP65 - Dust Tight, Water Resistant | |||||
Phoenix Contact 2700128 | 58.97 g | 0.13 lbs | Flashing | Optical Element | 1 | Clear | 50 °C | -20 C | 24 VAC | IP65 - Dust Tight, Water Resistant | |||||
Phoenix Contact 2700131 | 58.06 g | 0.128 lb | Steady | Optical Element | 1 | 50 °C | -20 C | 24 VAC | IP65 - Dust Tight, Water Resistant | ||||||
Phoenix Contact 2700157 | 73.03 g | 0.161 lb | Tube | 60 °C | -20 C | ||||||||||
Phoenix Contact 2700116 | Rotating | Optical Element | 1 | Red | 50 °C | -20 C | 24 VAC | IP65 - Dust Tight, Water Resistant | |||||||
Phoenix Contact 2700148 | 14.06 g | 0.031 lb | Replacement End Cover | 50 °C | -20 C | ||||||||||
Phoenix Contact 2700134 | 72.12 g | 0.159 lb | Double Flashing | Optical Element | 1 | 50 °C | -20 C | 24 VDC | IP65 - Dust Tight, Water Resistant | ||||||
Phoenix Contact 2700125 | Rotating | Optical Element | 1 | Yellow | 50 °C | -20 C | 24 VAC | IP65 - Dust Tight, Water Resistant | |||||||
Phoenix Contact 2700114 | 58.97 g | 0.13 lbs | Flashing | Optical Element | 1 | Red | 50 °C | -20 C | 24 VAC | IP65 - Dust Tight, Water Resistant | |||||
Phoenix Contact 2700164 | 328.85 g | 0.725 lb | Mounting Base |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
27001 Series
Stack Light Optical Element Red LED
