LMH32401IRGTR
ActivePROGRAMMABLE-GAIN DIFFERENTIAL-OUTPUT HIGH-SPEED TRANSIMPEDANCE AMPLIFIER
Deep-Dive with AI
Search across all available documentation for this part.
LMH32401IRGTR
ActivePROGRAMMABLE-GAIN DIFFERENTIAL-OUTPUT HIGH-SPEED TRANSIMPEDANCE AMPLIFIER
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LMH32401IRGTR | LMH32401 Series |
|---|---|---|
| -3db Bandwidth | - | 500 MHz |
| Amplifier Type | - | Transimpedance |
| Applications | Optical | Optical |
| Board Type | - | Fully Populated |
| Channels per IC | - | 1 - Single |
| Current - Output / Channel | - | 26.6 mA |
| Current - Supply (Main IC) | - | 29 mA |
| Mounting Type | Surface Mount | Surface Mount |
| Output Type | - | Differential |

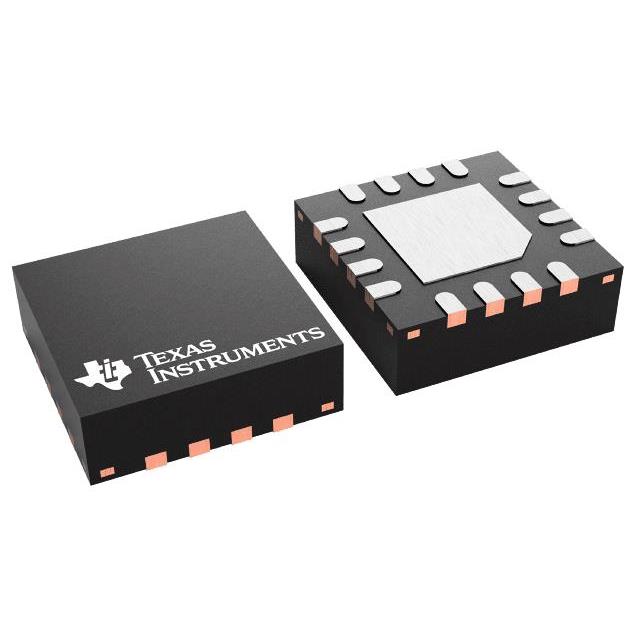

| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad, Die |
| Slew Rate | - | 1.1 V/ns |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 16-VQFN (3x3) | 16-VQFN (3x3), Diesale |
| Type | Transimpedance Amplifier | Transimpedance Amplifier |
| Utilized IC / Part | - | LMH32401 |
| Voltage - Supply, Single/Dual (±) | - | 3.45 V |
| Voltage - Supply, Single/Dual (±) | - | 3 V |
LMH32401 Series
Programmable-gain differential-output high-speed transimpedance amplifier
| Part | Mounting Type | Package / Case | Applications | Type | Supplier Device Package | Board Type | -3db Bandwidth | Current - Supply (Main IC) | Amplifier Type | Output Type | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Slew Rate | Current - Output / Channel | Supplied Contents | Utilized IC / Part | Channels per IC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LMH32401IRGTR | Surface Mount | 16-VFQFN Exposed Pad | Optical | Transimpedance Amplifier | 16-VQFN (3x3) | ||||||||||||
Texas Instruments LMH32401YR | Surface Mount | Die | Optical | Transimpedance Amplifier | Diesale | ||||||||||||
Texas Instruments LMH32401RGTEVM | Fully Populated | 500 MHz | 29 mA | Transimpedance | Differential | 3.45 V | 3 V | 1.1 V/ns | 26.6 mA | Board(s) | LMH32401 | 1 - Single | |||||
Texas Instruments LMH32401IRGTT | Surface Mount | 16-VFQFN Exposed Pad | Optical | Transimpedance Amplifier | 16-VQFN (3x3) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 5.46 | |
| Texas Instruments | LARGE T&R | 1 | $ 7.65 | |
| 100 | $ 6.24 | |||
| 250 | $ 4.90 | |||
| 1000 | $ 4.16 | |||
Description
General part information
LMH32401 Series
The LMH32401 device is a programmable-gain, single-ended, input-to-differential output transimpedance amplifier for light detection and ranging (LIDAR) applications and laser distance measurement systems. The LMH32401 device can be configured in a gain of 2 kΩ or 20 kΩ. The LMH32401 device has 1.5 VPPof output swing and is designed to drive a 100-Ω load.
The LMH32401 device has an integrated 100-mA clamp that protects the amplifier and allows the device to recover rapidly from an overloaded input condition. The LMH32401 device also features an integrated ambient light cancellation circuit that can be used instead of AC coupling between the photodiode and the amplifier to save board space in addition to reducing system cost. The ambient light cancellation circuit can be disabled in cases where DC coupling is required.
The LMH32401 device can be placed in low-power mode using theENpin to conserve power when the amplifier is not being used. Putting the amplifier in low-power mode places its output pins in a high-impedance state. This feature allows several LMH32401 amplifiers to be multiplexed to a single ADC with theENcontrol pin serving as the multiplexer select function.
