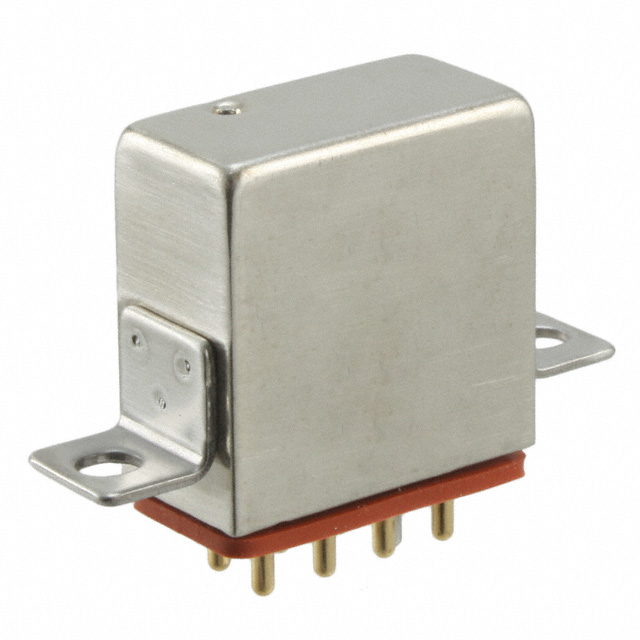

BR246-320A2-28V-024M

Active

Microsemi Corporation

RELAY GEN PURPOSE DPDT 10A 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BR246-320A2-28V-024M

Active

Microsemi Corporation

RELAY GEN PURPOSE DPDT 10A 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BR246-320A2-28V-024M

Coil Current	87.5 mA
Coil Resistance	320 Ohms
Coil Type	Non Latching
Coil Voltage	28 VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	10 A
Load - Max Switching	2080 VA, 280 W
Mounting Type	Socketable
Must Operate Voltage	18 VDC
Must Release Voltage	5.1 VDC
Operate Time	15 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage	208 VAC, 28 VDC
Termination Style	Plug In

BR246-32 Series

Part	Load - Max Switching	Termination Style	Must Operate Voltage	Release Time	Coil Current	Relay Type	Operate Time	Coil Type	Mounting Type	Switching Voltage	Contact Rating (Current)	Coil Voltage	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Coil Resistance
Microsemi Corporation BR246-320C1-28V-019M	280 W 2080 VA	Plug In	18 VDC	15 ms	87.5 mA	General Purpose	15 ms	Non Latching	Socketable	28 VDC 208 VAC	10 A	28 VDC	5.1 VDC	125 °C	-70 °C	DPDT (2 Form C)	320 Ohms
Microsemi Corporation BR246-320A2-28V-024M	280 W 2080 VA	Plug In	18 VDC	15 ms	87.5 mA	General Purpose	15 ms	Non Latching	Socketable	28 VDC 208 VAC	10 A	28 VDC	5.1 VDC	125 °C	-70 °C	DPDT (2 Form C)	320 Ohms
Microsemi Corporation BR246-320B2-28V-023M	280 W 2080 VA	Solder Hook	18 VDC	15 ms	87.5 mA	General Purpose	15 ms	Non Latching	Chassis Mount	28 VDC 208 VAC	10 A	28 VDC	5.1 VDC	125 °C	-70 °C	DPDT (2 Form C)	320 Ohms
Microsemi Corporation BR246-320C3-28V-025L	280 W 2080 VA	Plug In	18 VDC	15 ms	87.5 mA	General Purpose	15 ms	Non Latching	Chassis Mount	28 VDC 208 VAC	10 A	28 VDC	5.1 VDC	125 °C	-70 °C	DPDT (2 Form C)	320 Ohms
Microsemi Corporation BR246-320B3-28V	280 W 2080 VA	Solder Hook	18 VDC	15 ms	87.5 mA	General Purpose	15 ms	Non Latching	Chassis Mount	28 VDC 208 VAC	10 A	28 VDC	5.1 VDC	125 °C	-70 °C	DPDT (2 Form C)	320 Ohms
Microsemi Corporation BR246-320B3-28V-23	280 W 2080 VA	Solder Hook	18 VDC	15 ms	87.5 mA	General Purpose	15 ms	Non Latching	Chassis Mount	28 VDC 208 VAC	10 A	28 VDC	5.1 VDC	125 °C	-70 °C	DPDT (2 Form C)	320 Ohms
Microsemi Corporation BR246-320G3-28V-027	280 W 2080 VA		18 VDC	15 ms	87.5 mA	General Purpose	15 ms	Non Latching	Chassis Mount	28 VDC 208 VAC	10 A	28 VDC	5.1 VDC	125 °C	-70 °C	DPDT (2 Form C)	320 Ohms
Microsemi Corporation BR246-320G3-26V-027M	280 W 2080 VA			15 ms	81.3 mA	General Purpose	15 ms	Non Latching	Chassis Mount	28 VDC 208 VAC	10 A	26 VDC		125 °C	-70 °C	DPDT (2 Form C)	320 Ohms
Microsemi Corporation BR246-320B2-28V-028L	280 W 2080 VA	Solder Hook	18 VDC	15 ms	87.5 mA	General Purpose	15 ms	Non Latching	Chassis Mount	28 VDC 208 VAC	10 A	28 VDC	5.1 VDC	125 °C	-70 °C	DPDT (2 Form C)	320 Ohms
Microsemi Corporation BR246-320C3-28VC-025M	280 W 2080 VA	Plug In	18 VDC	15 ms	87.5 mA	General Purpose	15 ms	Non Latching	Chassis Mount	28 VDC 208 VAC	10 A	28 VDC	5.1 VDC	125 °C	-70 °C	DPDT (2 Form C)	320 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BR246-32 Series

General Purpose Relay DPDT (2 Form C) 28VDC Coil Socketable
