SSRH24NV-30145

Active

KEMET

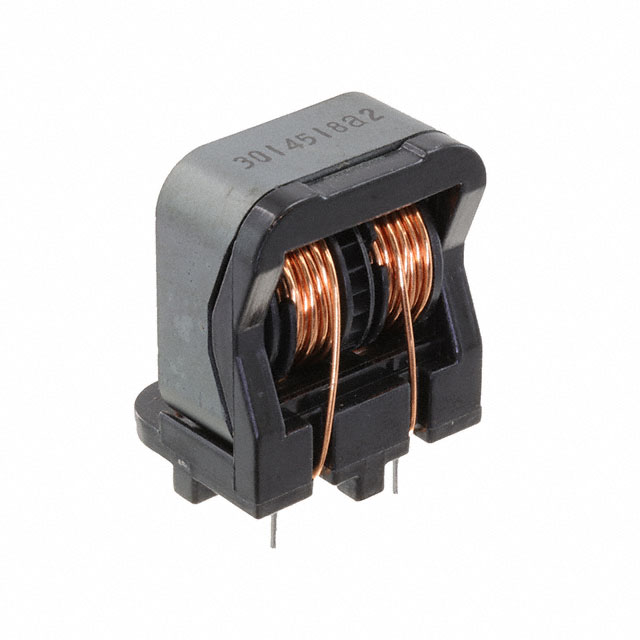

COMMON MODE CHOKES DUAL 14500UH 10KHZ 3A 0.102OHM DCR THRU-HOLE TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SSRH24NV-30145 Spec +1

SSRH24NV-30145

Active

KEMET

COMMON MODE CHOKES DUAL 14500UH 10KHZ 3A 0.102OHM DCR THRU-HOLE TRAY

Deep-Dive with AI

DocumentsDatasheet SSRH24NV-30145 Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSRH24NV-30145

Current Rating (Max) [Max]	3 A
DC Resistance (DCR) (Max)	102 mOhm
Height (Max)	31 mm
Height (Max) [Max]	1.22 in
Inductance @ Frequency	14.5 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-25 °C
Package / Case	4 Lead
Package / Case	Vertical
Size / Dimension [x]	1.004 "
Size / Dimension [x]	25.5 mm
Size / Dimension [y]	25.5 mm
Size / Dimension [y]	1.004 in
Voltage Rating - AC	250 V

SSRH24N Series

Part	Inductance @ Frequency	Height (Max) [Max]	Height (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	DC Resistance (DCR) (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Lines	Voltage Rating - AC	Current Rating (Max) [Max]	Package / Case	Package / Case	Height (Max)	DC Resistance (DCR) (Max) [Max]
KEMET SSRH24NH-16470	10 kHz 47 mH	0.709 in	18 mm	120 °C	-25 °C	Through Hole	327 mOhm	25.5 mm	1.004 in	1.004 "	25.5 mm	2	250 V	1.6 A	4 Lead	Vertical
KEMET SSRH24NVS-12500		1.22 in		120 °C	-25 °C	Through Hole		25.5 mm	1.004 in	1.004 "	25.5 mm	2	250 V	1.2 A	4 Lead	Vertical	31 mm
KEMET SSRH24NVS-45041	4.1 mH	1.22 in		120 °C	-25 °C	Through Hole		25.5 mm	1.004 in	1.004 "	25.5 mm	2	250 V		4 Lead	Vertical	31 mm	41 mOhm
KEMET SSRH24NHS-30092	9.2 mH 10 kHz	0.709 in	18 mm	120 °C	-25 °C	Through Hole		25.5 mm	1.004 in	1.004 "	25.5 mm	2	250 V	3 A	4 Lead	Vertical		79 mOhm
KEMET SSRH24NHS-16320	32 mH	0.709 in	18 mm	120 °C	-25 °C	Through Hole	265 mOhm	25.5 mm	1.004 in	1.004 "	25.5 mm	2	250 V	1.6 A	4 Lead	Vertical
KEMET SSRH24NV-12655	65.5 mH	1.22 in		120 °C	-25 °C	Through Hole		25.5 mm	1.004 in	1.004 "	25.5 mm	2	250 V	1.2 A	4 Lead	Vertical	31 mm	475 mOhm
KEMET SSRH24NH-25205	10 kHz 20.5 mH	0.709 in	18 mm	120 °C	-25 °C	Through Hole		25.5 mm	1.004 in	1.004 "	25.5 mm	2	250 V	2.5 A	4 Lead	Vertical		145 mOhm
KEMET SSRH24NHS-35080		0.709 in	18 mm	120 °C	-25 °C	Through Hole	74 mOhm	25.5 mm	1.004 in	1.004 "	25.5 mm	2	250 V	3.5 A	4 Lead	Vertical
KEMET SSRH24NH-30145	14.5 mH	0.709 in	18 mm	120 °C	-25 °C	Through Hole	102 mOhm	25.5 mm	1.004 in	1.004 "	25.5 mm	2	250 V	3 A	4 Lead	Vertical
KEMET SSRH24NV-30145	14.5 mH	1.22 in		120 °C	-25 °C	Through Hole	102 mOhm	25.5 mm	1.004 in	1.004 "	25.5 mm	2	250 V	3 A	4 Lead	Vertical	31 mm
