9004-1113-000

Active

Radiall USA, Inc.

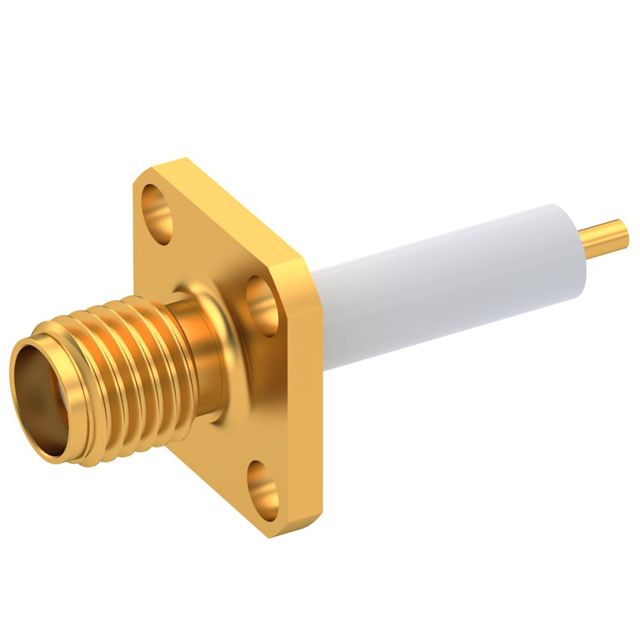

SMA / STRAIGHT JACK RECEPTACLE F

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK RECEPTACLE F

Technical Specifications

Parameters and characteristics for this part

Specification	9004-1113-000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Mating Cycles	Impedance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Shield Termination	Number of Ports	Dielectric Material	Connector Style	Body Finish	Mounting Type	Center Contact Material	Center Contact Plating	Contact Termination	Connector Type	Mounting Feature	Body Material	Frequency - Max [Max]
Radiall USA, Inc. 9004-1113-000	500	50 Ohms	Extended Insulation	-65 ░C	165 °C	Gold	Solder	1	Polytetrafluoroethylene (PTFE)	SMA	Gold	Panel Mount Through Hole	Beryllium Copper	Gold	Solder	Female Socket Jack	Flange	Stainless Steel	18 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.85

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
