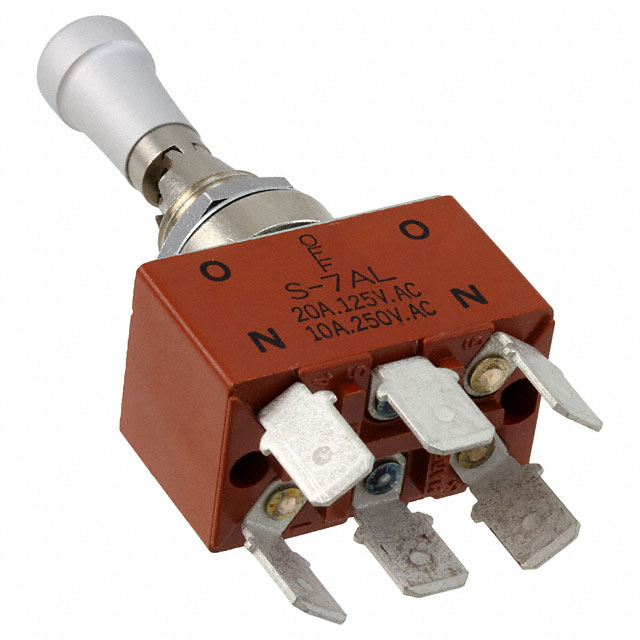

TOGGLE SWITCH, ON-OFF-ON, DPDT, NON ILLUMINATED, S SERIES, PANEL MOUNT, 20 A

Search across all available documentation for this part.

Active

NKK Switches

TOGGLE SWITCH, ON-OFF-ON, DPDT, NON ILLUMINATED, S SERIES, PANEL MOUNT, 20 A

Technical Specifications

Parameters and characteristics for this part

Specification	S7ALF

Actuator Length [x]	23.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Locking Lever
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	20 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Actuator Material	Bushing Thread	Bushing Thread	Actuator Type	Voltage Rating - AC	Termination Style	Actuator Length [x]	Circuit	Panel Cutout Dimensions [diameter]	Ingress Protection	Switch Function	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Illumination
NKK Switches S7ALF	20 A	Brass Chrome Plated	M12	1 x 1	Locking Lever	125 V	Quick Connect - 0.250" (6.3mm)	23.5 mm	DPDT	12.5 mm	IP67 - Dust Tight Waterproof	On-Off-On	30 V	70 °C	-30 ░C	25000 Steps	Non-Illuminated
