0009781041

Obsolete

Molex

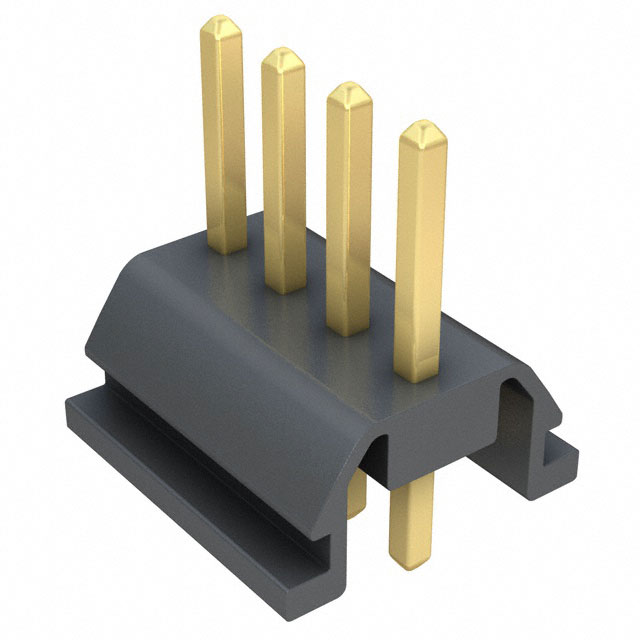

CONN HEADER VERT 4POS 3.96MM

Search across all available documentation for this part.

Obsolete

Molex

CONN HEADER VERT 4POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	0009781041

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	20 µin
Contact Finish Thickness - Post	0.51 µm
Contact Length - Mating	16 mm
Contact Length - Mating	0.63 in
Contact Length - Post [x]	0.635 in
Contact Length - Post [x]	16.13 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Panel Mount, Snap-In
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	35.05 mm
Overall Contact Length	1.38 in
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder

CONN HEADER VERT 4POS 3.96MM

Part	Number of Rows	Contact Material	Contact Shape	Applications	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Mounting Type	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Shrouding	Insulation Material	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Style	Number of Positions	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Finish - Post
Molex 0009781041	1	Brass	Square	Automotive, General Purpose, Industrial, Medical, Telecommunications	Gold	0.51 µm	20 µin	16 mm	0.63 in	20 µin	0.51 µm	Solder	Panel Mount, Snap-In, Through Hole	Male Pin	0.635 in	16.13 mm	Natural	Unshrouded	Polyamide (PA66), Nylon 6/6	Header	UL94 V-2	0.156 in	3.96 mm	Push-Pull	6.35 mm	0.25 in	Board to Cable/Wire	4	35.05 mm	1.38 in	All	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Panel Mount, Snap-In; Through Hole 4 position 0.156" (3.96mm)
