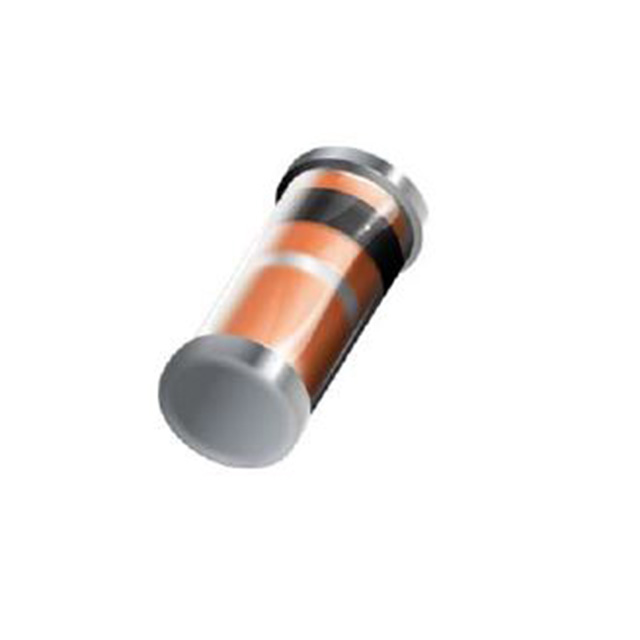

Specification	BAV103 L0G

Capacitance	4 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage	100 nA
Mounting Type	Surface Mount
Operating Temperature - Junction (Max)	200 °C
Operating Temperature - Junction (Min)	-65 °C
Package / Case	MINI-MELF, SOD-80, DO-213AC
Package Name	Mini MELF
Speed	Any Speed, Small Signal
Speed - Fast Recovery (Maximum)	200 mA
Speed - Small Signal Current Max	200 mA, 200 mA, 200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	250 V
Voltage - Forward (Vf) (Max)	1 V

BAV103 Series

Part	Speed - Small Signal Current Max	Speed	Speed - Fast Recovery (Maximum)	Voltage - DC Reverse (Vr) (Max)	Capacitance	Technology	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Package Name	Current - Reverse Leakage	Package / Case	Mounting Type	Voltage - Forward (Vf) (Max)	Current - Average Rectified (Io)
Taiwan Semiconductor Corporation BAV103 L0G	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	250 V	4 pF	Standard	200 °C	-65 °C	Mini MELF	100 nA	DO-213AC MINI-MELF SOD-80	Surface Mount	1 V	200 mA
Taiwan Semiconductor Corporation BAV103 L1G	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	250 V	4 pF	Standard	200 °C	-65 °C	Mini MELF	100 nA	DO-213AC MINI-MELF SOD-80	Surface Mount	1 V	200 mA
