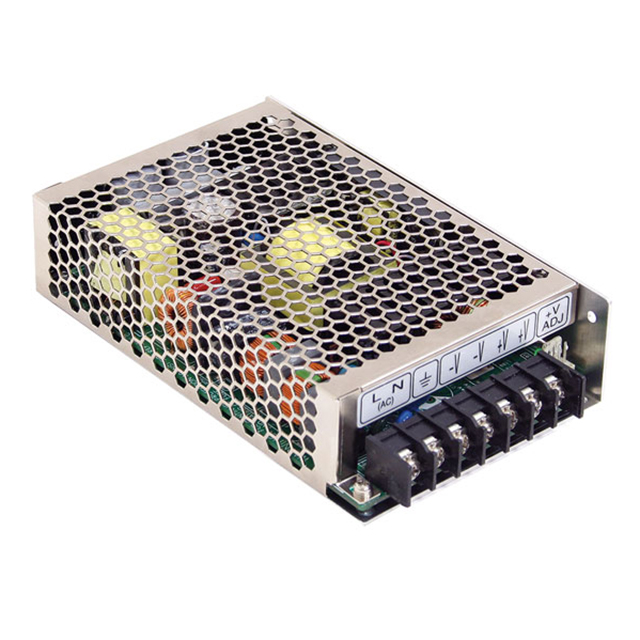

MSP-100-15
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 15V 105W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSP-100-15
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 15V 105W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSP-100-15 |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 7 A |
| Efficiency | 88 % |
| Features | PFC, Remote On/Off, Universal Input, Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 105 W |
| Size / Dimension [x] | 6.26 in |
| Size / Dimension [x] | 159 mm |
| Size / Dimension [y] | 97 mm |
| Size / Dimension [y] | 3.82 in |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 24 | $ 50.98 | |
Description
General part information
MSP-100 Series
Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC, 120 ~ 370 VDC Input
