182123

Active

Amphenol RF

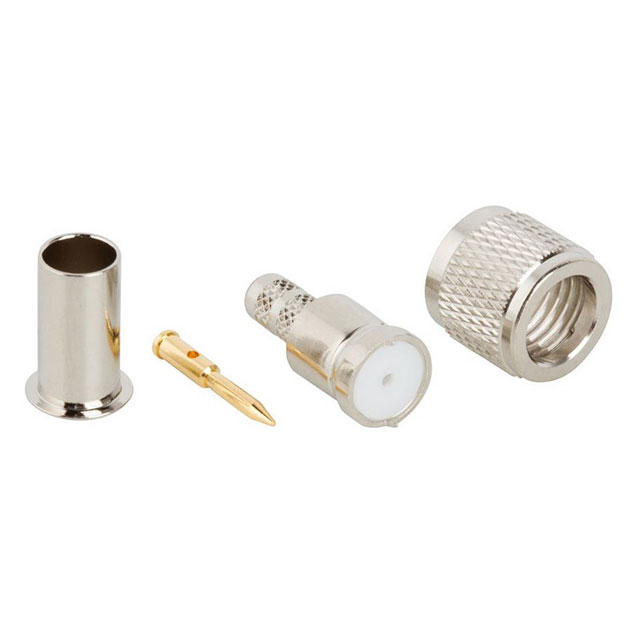

CONN MINI UHF PLUG STR 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

182123

Active

Amphenol RF

CONN MINI UHF PLUG STR 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	182123

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Mini, UHF
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector, 1 Coupling Nut
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	335 V

1821 Series

Part	Mating Cycles	Frequency - Max [Max]	Impedance	Center Contact Plating	Center Contact Material	Voltage Rating	Shield Termination	Features	Contact Termination	Connector Style	Mounting Type	Dielectric Material	Body Finish	Body Material	Connector Type	Housing Color	Includes	Cable Group	Number of Ports	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Style	Center Gender	Convert To (Adapter End)	Adapter Series	Conversion Type	Adapter Type	Cable Group	Convert From (Adapter End)
Amphenol RF 182124	500	300 MHz	Non-Constant	Gold	Brass	500 V	Solder	PL-259	Solder Cup	UHF	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	Brass	Male Pin Plug	Silver
Amphenol RF 182115	500	300 MHz	Non-Constant	Gold	Brass	500 V	Crimp		Crimp	UHF	Free Hanging (In-Line)	Phenol Formaldehyde (Phenolic)	Nickel	Brass	Male Pin Plug	Silver	1 Connector 1 Ferrule	Belden 9258 LMR-240 RG-8X	1
Amphenol RF 182117	500	2.5 GHz		Gold	Phosphor Bronze	335 V	Crimp		Crimp	Mini UHF	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	Nickel	Zinc Die Cast	Female Socket Jack	Silver	1 Connector 1 Contact 1 Ferrule 1 Insulator	188 188A 316 LMR-100 M17/119-RG174 RG-174	1	50 Ohms	85 °C	-55 °C
Amphenol RF 182109		2.5 GHz		Gold	Brass						Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Nickel	Brass						50 Ohms	165 °C	-65 ░C	Straight	Female to Female	Female Socket UHF Jack	UHF to UHF	Same Series	Jack to Jack
Amphenol RF 182110	500	2.5 GHz		Gold	Brass	335 V	Crimp		Solder	Mini UHF	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Nickel	Brass	Male Pin Plug	Silver	1 Connector 1 Contact 1 Coupling Nut 1 Ferrule	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1	50 Ohms	85 °C	-55 °C
Amphenol RF 182113	500	2 GHz		Gold	Phosphor Bronze	335 V	Crimp		Crimp	Mini UHF	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Nickel	Brass	Female Socket Jack	Silver	1 Connector 1 Contact 1 Ferrule	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1	50 Ohms	165 °C	-65 ░C
Amphenol RF 182123	500	2.5 GHz		Gold	Brass	335 V	Crimp		Solder	Mini UHF	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Nickel	Brass	Male Pin Plug	Silver	1 Connector 1 Contact 1 Coupling Nut 1 Ferrule	RG-55	1	50 Ohms	85 °C	-55 °C							142 223 400
Amphenol RF 182134		2.5 GHz		Gold	Brass						Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	Nickel	Brass						50 Ohms	165 °C	-65 ░C	Right Angle		Female Socket UHF Jack	UHF to UHF	Same Series	Plug to Jack		UHF Plug Male Pin
Amphenol RF 182100	500	300 MHz		Gold	Brass	500 V	Crimp		Crimp	UHF	Free Hanging (In-Line)	Phenol Formaldehyde (Phenolic)	Nickel	Brass	Male Pin Plug	Silver	1 Connector 1 Ferrule	Belden 7807A LMR-200 RG-58	1	50 Ohms
Amphenol RF 182118	500	2.5 GHz		Gold	Brass	335 V	Crimp		Solder	Mini UHF	Free Hanging (In-Line)	Polyoxymethylene (POM) Acetal	Nickel	Brass	Male Pin Plug	Silver	1 Connector 1 Contact 1 Ferrule 1 Insulator	188 188A 316 LMR-100 M17/119-RG174 RG-174	1	50 Ohms	85 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 3.91
		10	$ 3.32
		25	$ 3.11
		50	$ 2.96
		100	$ 2.82
		300	$ 2.61
		500	$ 2.52
		1000	$ 2.40
		2500	$ 2.25

Description

General part information

1821 Series

UHF, Mini Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
