3015-B-256-B
ActiveRAF Electronic Hardware

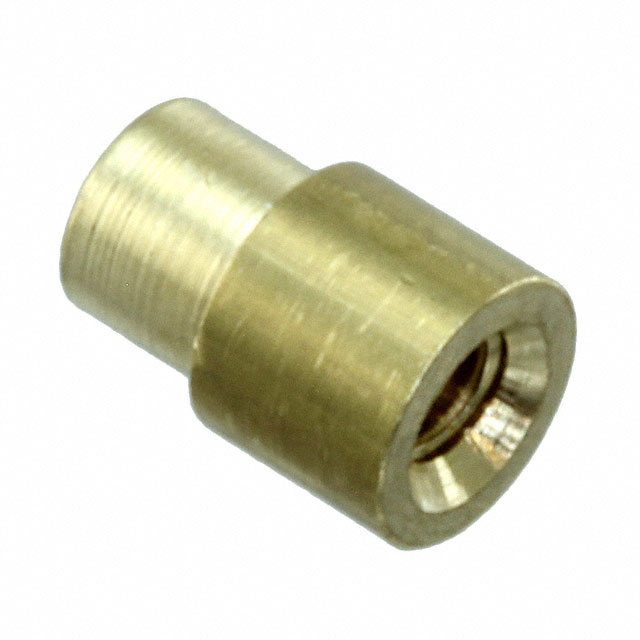

ROUND STANDOFF #2-56 BRASS 1/8"
3015-B-256-B
ActiveRAF Electronic Hardware
ROUND STANDOFF #2-56 BRASS 1/8"
Description
General part information
3015-B Series
Round Standoff Threaded #2-56 Brass 0.125" (3.18mm) 1/8"
Technical Specifications
Parameters and characteristics for this part
| Specification | 3015-B-256-B |
|---|---|
| Between Board Height | 0.125 in |
| Diameter - Inside | 0.098 in |
| Diameter - Outside | 0.156 in |
| Diameter - Outside (Nominal) | 0.15625 in |
| Gender | Swage, Female |
| Length - Overall | 0.23 in |
| Material | Brass |
| Screw Thread Size | #2-56 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
